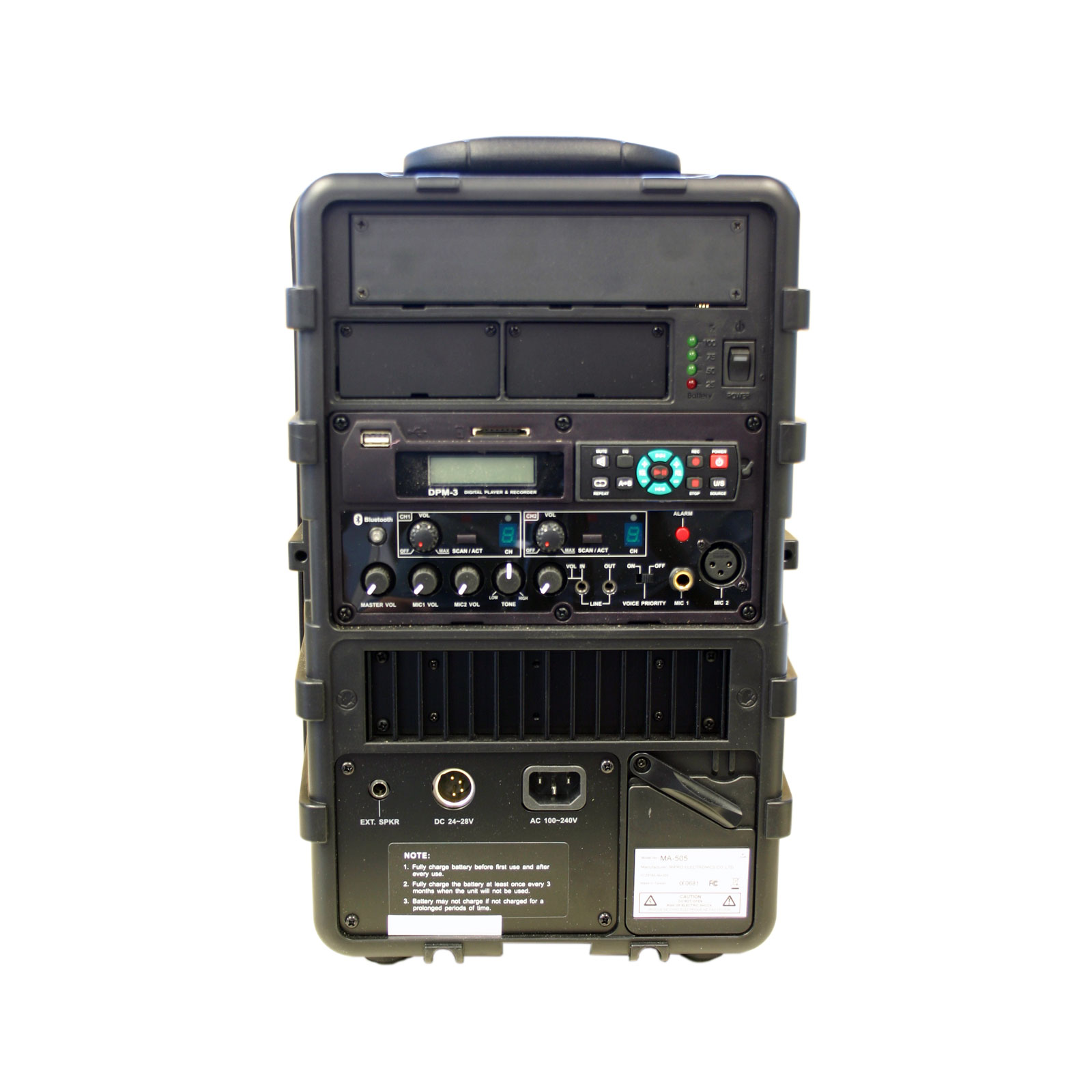

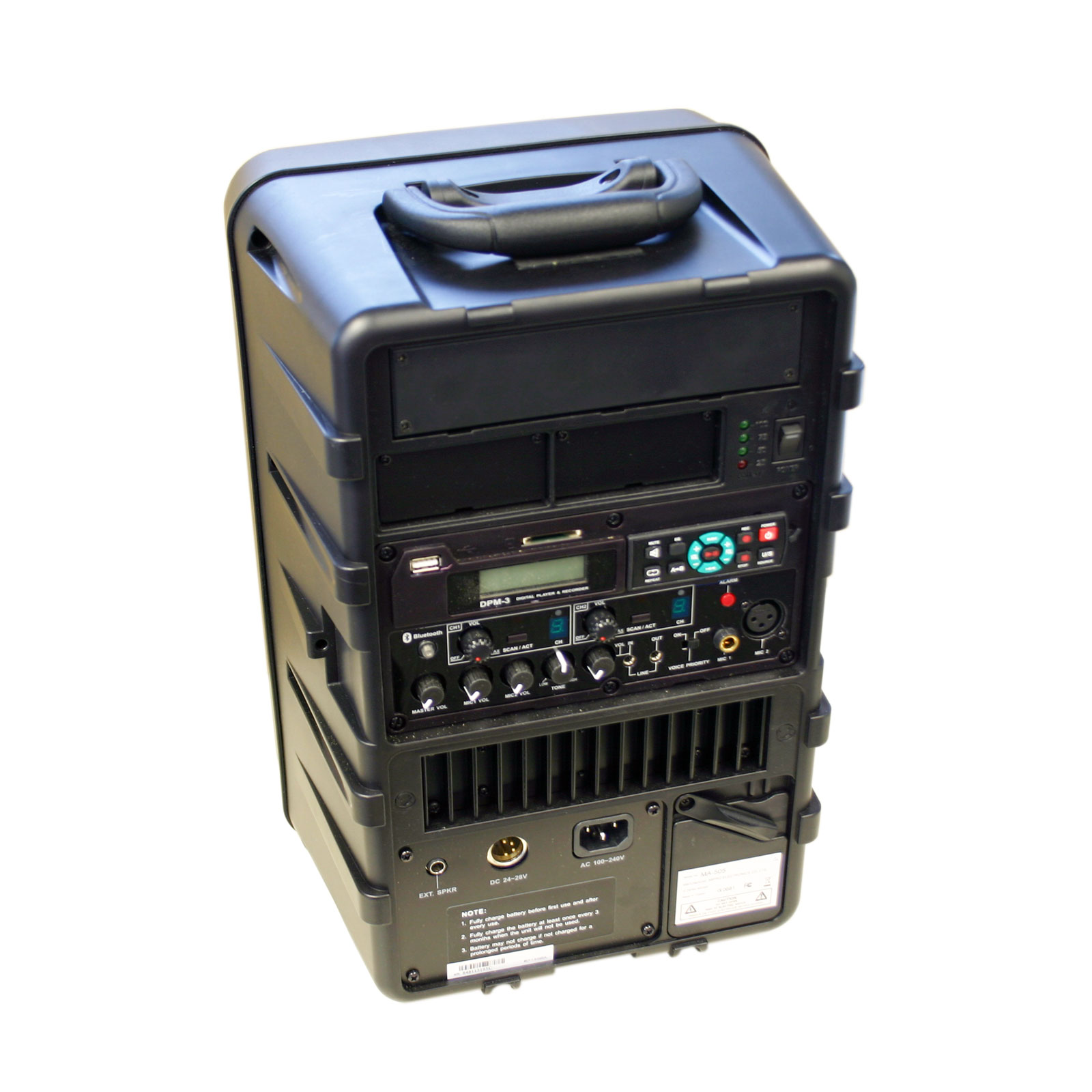

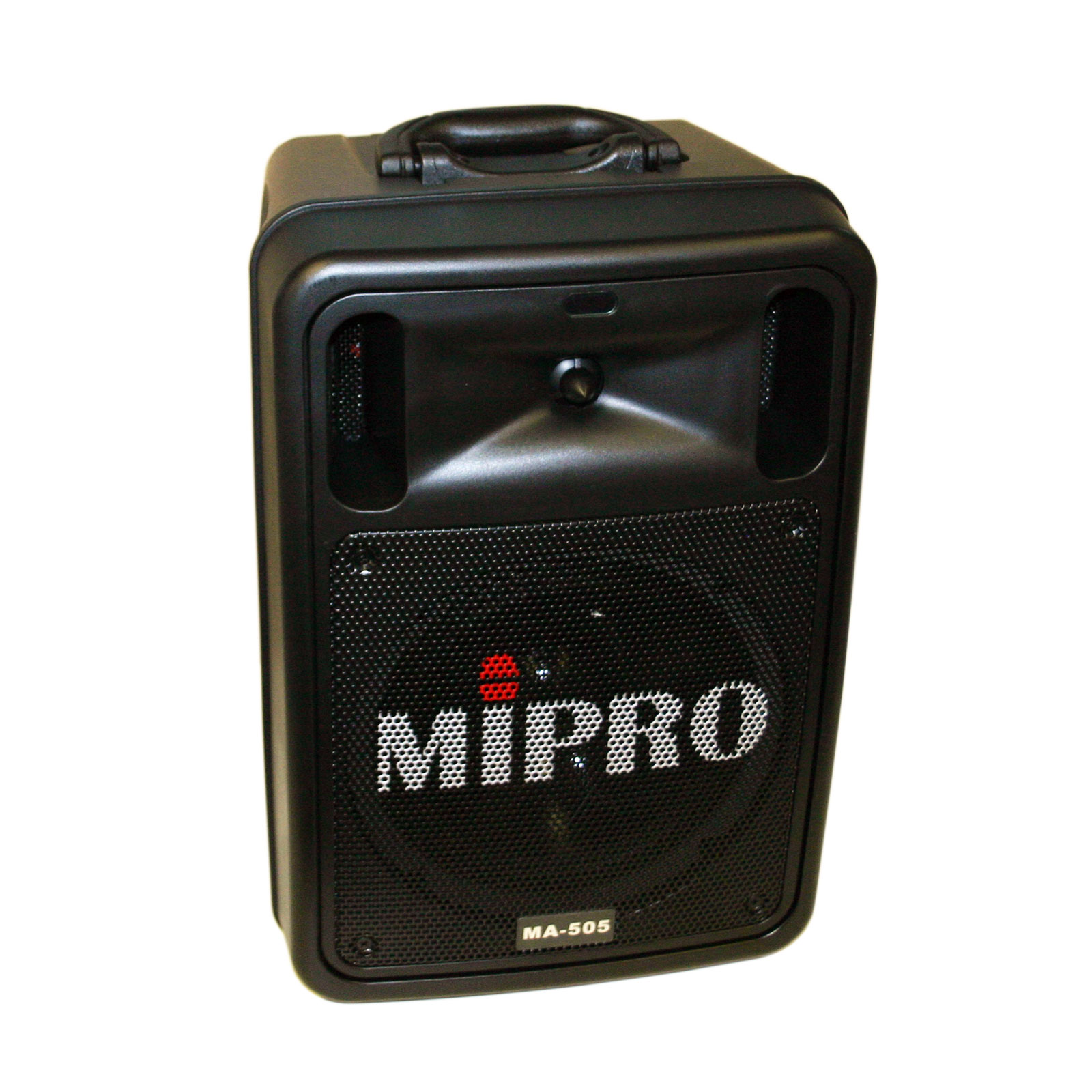

Mipro MA505 Portable Battery PA System with 2 x Wireless Receivers, Bluetooth & DPM3 Player/Recorder

5NB Freq.

$2,189.00
RRP $2,575.00
SAVE $386.00 (15%)
Only 1 Left!

145-watt power of loud and clear sound via high efficient class-D amplifier

Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer

Wireless receiver with 16 auto-scannable frequencies

Built-in Bluetooth music player for wireless audio streaming

Built-in AC switching power supply for universal usage and fast battery charge

Calculate Shipping

The MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound.

Complete with 2 x Wireless Receivers 5NB frequency set (520-544MHz ), Bluetooth connection and In-Built Digital Player/Recorder.

It offers an ideal public address solution for medium crowds.

Ideal Applications :

  • School classrooms & halls
  • Places of worship
  • Presentations, seminars and meetings
  • Day-care activities; playground duty
  • Indoor/outdoor gatherings
  • Weddings & funeral services
  • Shopping center & trade show presentations and promotions
  • Street performers
  • Aerobic and fitness centers
  • Recreational and social activities

Features :

  • 145-watt power of loud and clear sound via high efficient class-D amplifier.
  • Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer.
  • Powerful and crystal-clear sound projection.
  • Wireless receiver with 16 auto-scannable frequencies.
  • One-touch Scan & ACT sync button for fast and easy channel set-up.
  • Built-in Bluetooth music player for wireless audio streaming.
  • A voice priority feature that mutes the music when wireless microphone is used.
  • Built-in one-button alarm/siren for warning of threats.
  • Built-in AC switching power supply for universal usage and fast battery charge.
  • A smart 4-segment battery meter for accurate battery reading and charging status.
  • Built-in cable storage compartment.
  • AC and lithium rechargeable battery operation.
  • Up to 8 hours of stand-by time per 4-hour full charge.
  • Built-in Audio Player/Recorder : DPM-3, MP3 player/recorder for USB and SD card.

Specifications :

  • Power Output : 100W(rms) 4ohm, 145W(max) 4ohm
  • Amplifier : Class D
  • Sensitivity : Typical - 91 dB, Maximum - 109 dB
  • T.H.D. : < 1%
  • Frequency Response : 50 Hz~18 kHz
  • Speakers : Tweeter - 1 " Tweeter, Bass - 8 " Woofer
  • Coverage : H 130 deg. x V 90 deg.
  • Audio Inputs :
    • Wired : XLR balanced & unbalanced 6.3 mm (1/4 ")
    • Wireless : Up to 4. 2 Built-in & 2 External
    • Line-In : 3.5 mm (1/8 ") mini-jack
    • Bluetooth Connectivity : Yes
  • Audio Output : 3.5 mm (1/8 ") mini-jack
  • Extension Speaker : Unbalanced 6.3 mm (1/4 ") jack
  • Volume : Individual volume control
  • Functions : VOP, Tone control, Alarm Siren Siren sound with fade-in mode
  • Storage : For AC power cable
  • Power Supply :
    • AC :
      • Built-in 100~240V AC switching power supply (Max. Power Consumption: 165W)
    • DC & Battery :
      • External DC connector.
      • Built-in 22.2V/4.5AH rechargeable lithium (MB-35 x 1)
        • Charge Time : Up to 4 hours (automatic charging management)
        • Standby Time : Up to 8 hours
        • Battery Indicator : 4-level LED indicator (25/50/75/100%)
  • Color : Black
  • Dimensions : (W × H × D) 285 × 400 × 225 mm
  • Weight (battery included) : Approx. 8.5 kg
  • Wireless System :
    • Built-in Fixed Receiver 1 or 2 Scan & ACT sync
    • Frequency Set : 520-544MHz
    • Preset Channels & Bandwidth : 16 preset channels in 24 MHz frequency bandwidth.
    • Antenna : Built-in proprietary active high efficiency antenna

(MP-MA505R2DPM3-5NB)

SKU MP-MA505R2DPM3-5NB
Brand Mipro
Shipping Weight 11.0000kg
Shipping Width 0.400m
Shipping Height 0.330m
Shipping Length 0.630m
Shipping Cubic 0.083160000m3
