Mipro MA505PA Battery Portable PA System, Bluetooth, Wired Mic & Wireless Lapel Microphone

$2,069.00
RRP $2,357.00
SAVE $288.00 (12%)
Only 1 Left!

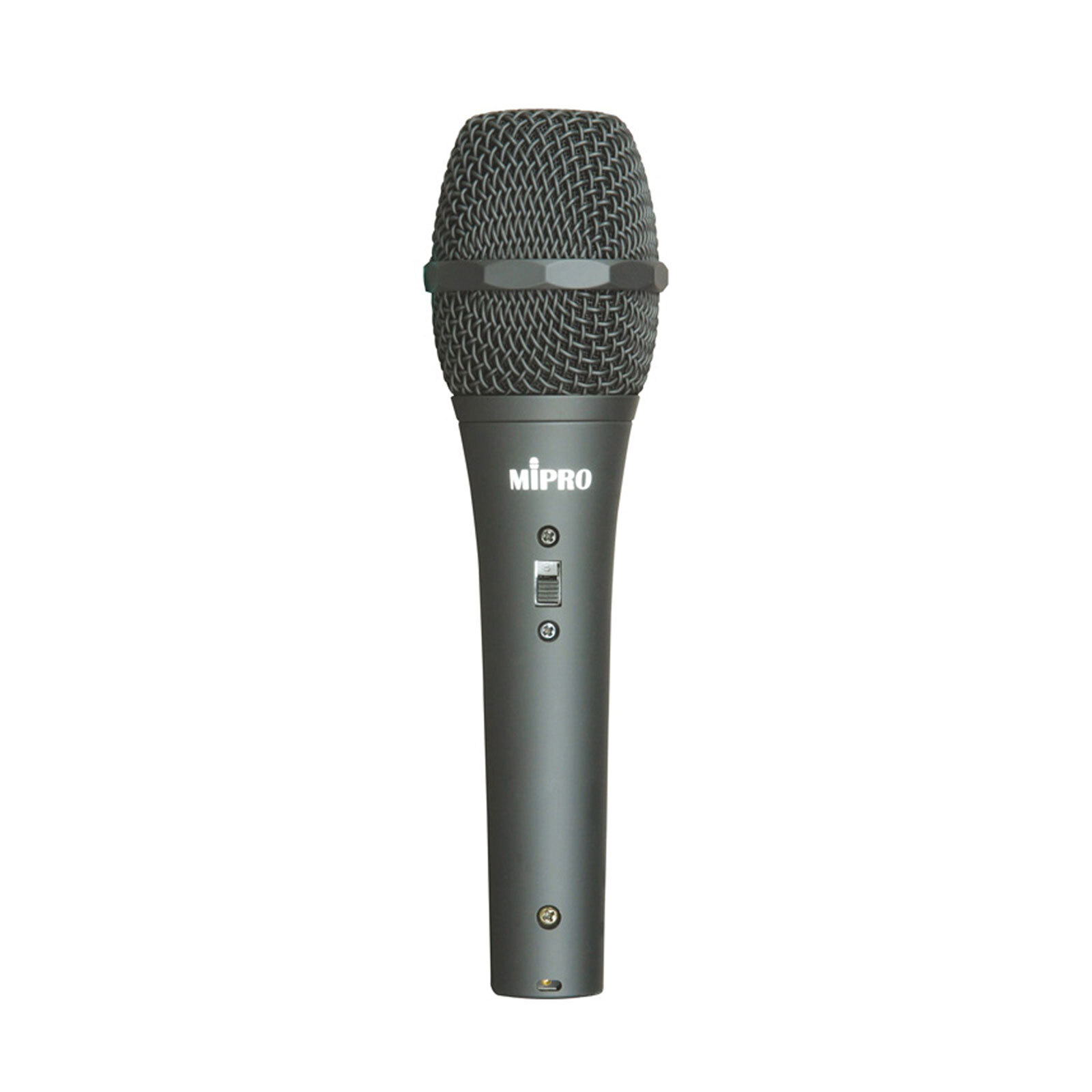

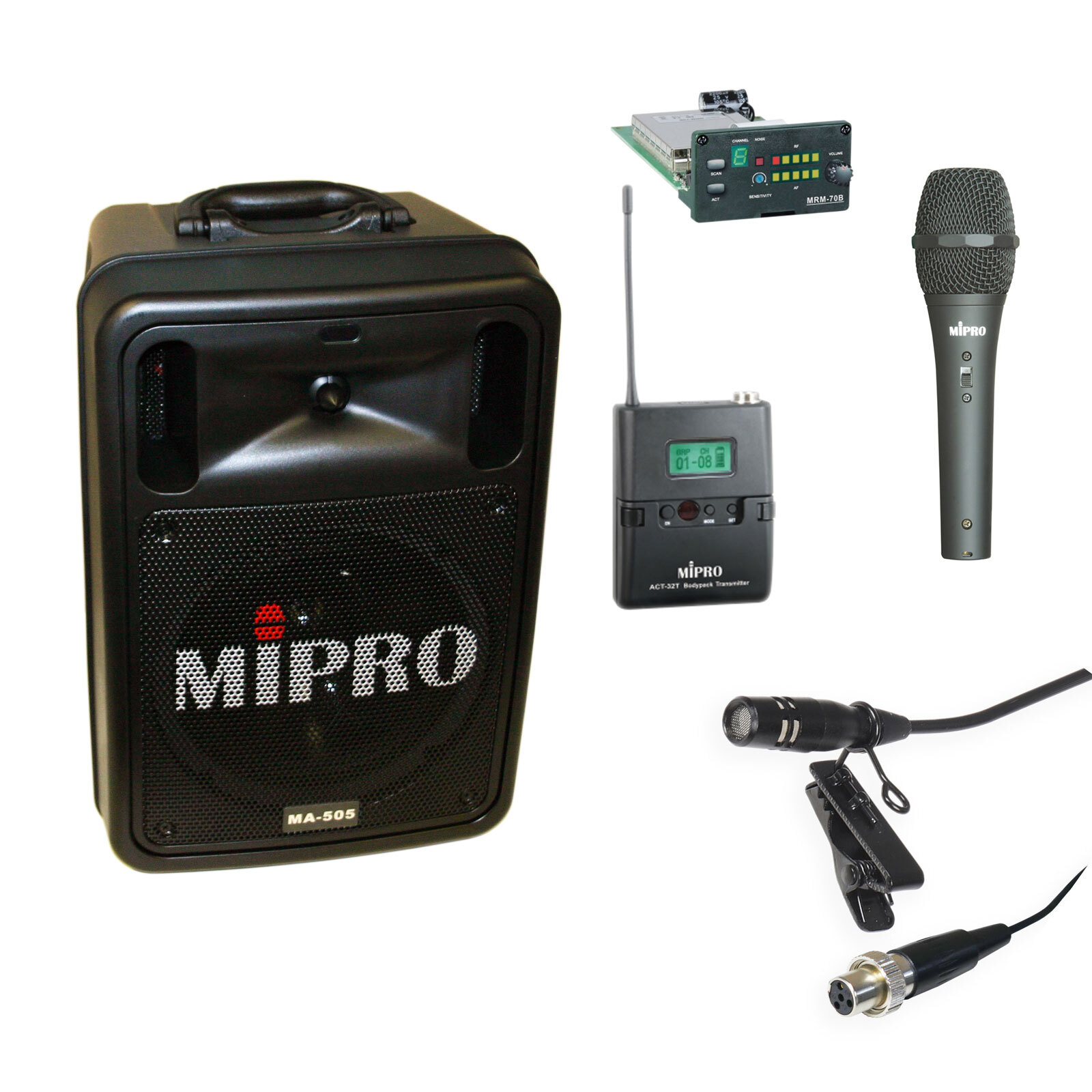

Complete with Wireless Receiver, Wireless Bodypack Transmitter, Wireless Lavalier Microphone and Handheld Wired Microphone with Cable

145-watt power of loud and clear sound via high efficient class-D amplifier

Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer

Built-in Bluetooth music player for wireless audio streaming

Up to 8 hours of stand-by time per 4-hour full charge

Calculate Shipping

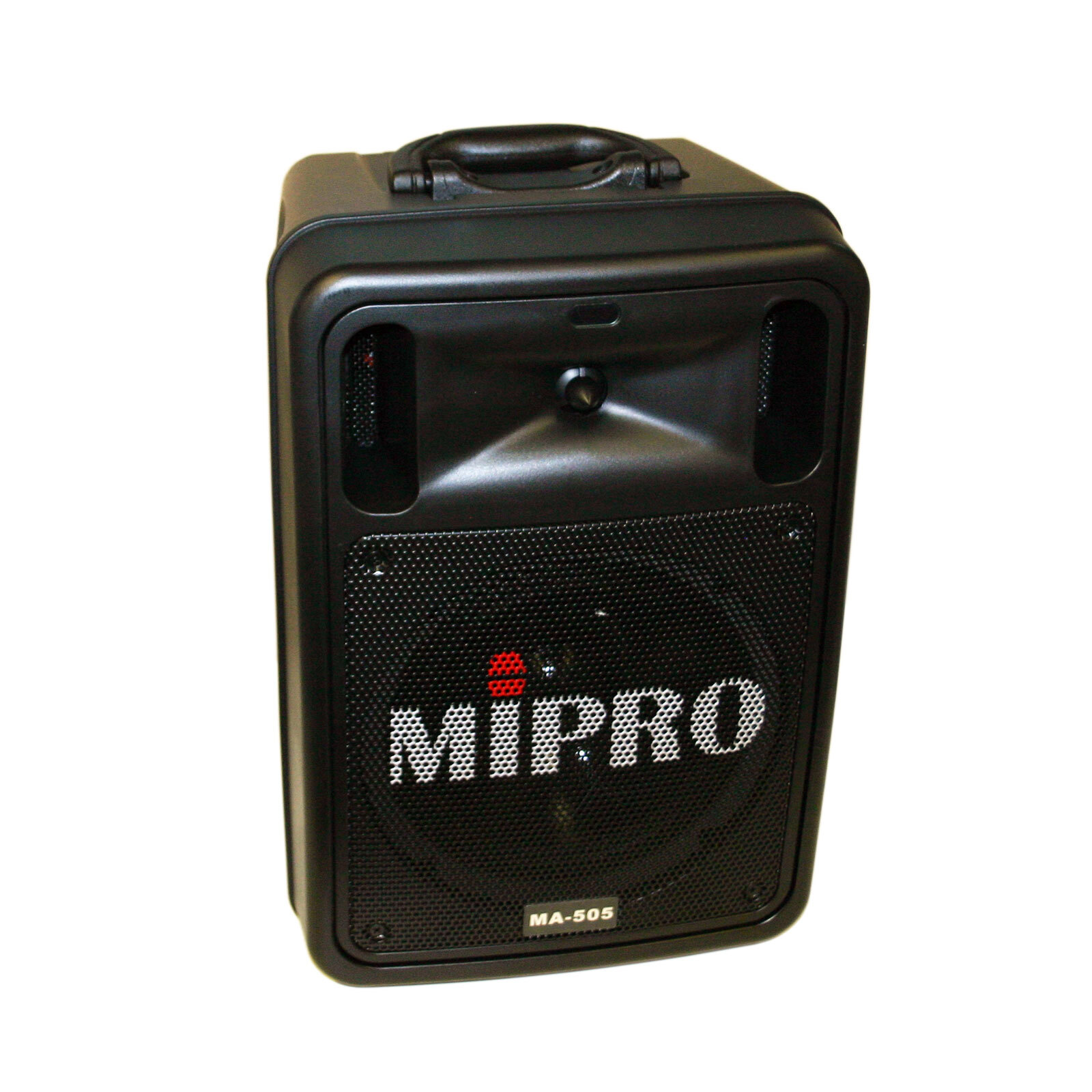

The Mipro MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound.

Complete with Wireless Receiver, Wireless Bodypack Transmitter, Wireless Lapel Microphone and Handheld Microphone with Cable.

It offers an ideal public address solution for medium crowds.

Ideal Applications :

  • School classrooms & halls
  • Places of worship
  • Presentations, seminars and meetings
  • Day-care activities; playground duty
  • Indoor/outdoor gatherings
  • Weddings & funeral services
  • Shopping center & trade show presentations and promotions
  • Street performers
  • Aerobic and fitness centers
  • Recreational and social activities

Features :

  • 145-watt power of loud and clear sound via high efficient class-D amplifier.
  • Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer.
  • Powerful and crystal-clear sound projection.
  • Built-in Bluetooth music player for wireless audio streaming.
  • Built-in one-button alarm/siren for warning of threats.
  • Built-in AC switching power supply for universal usage and fast battery charge.
  • A smart 4-segment battery meter for accurate battery reading and charging status.
  • Built-in cable storage compartment.
  • AC and lithium rechargeable battery operation.
  • Up to 8 hours of stand-by time per 4-hour full charge.

Technical :

  • Power Output : 100W(rms) 4ohm, 145W(max) 4ohm
  • Amplifier : Class D
  • Sensitivity : Typical - 91 dB, Maximum - 109 dB
  • T.H.D. : < 1%
  • Frequency Response : 50 Hz~18 kHz
  • Speakers : Tweeter - 1 " Tweeter, Bass - 8 " Woofer
  • Coverage : H 130 deg. x V 90 deg.

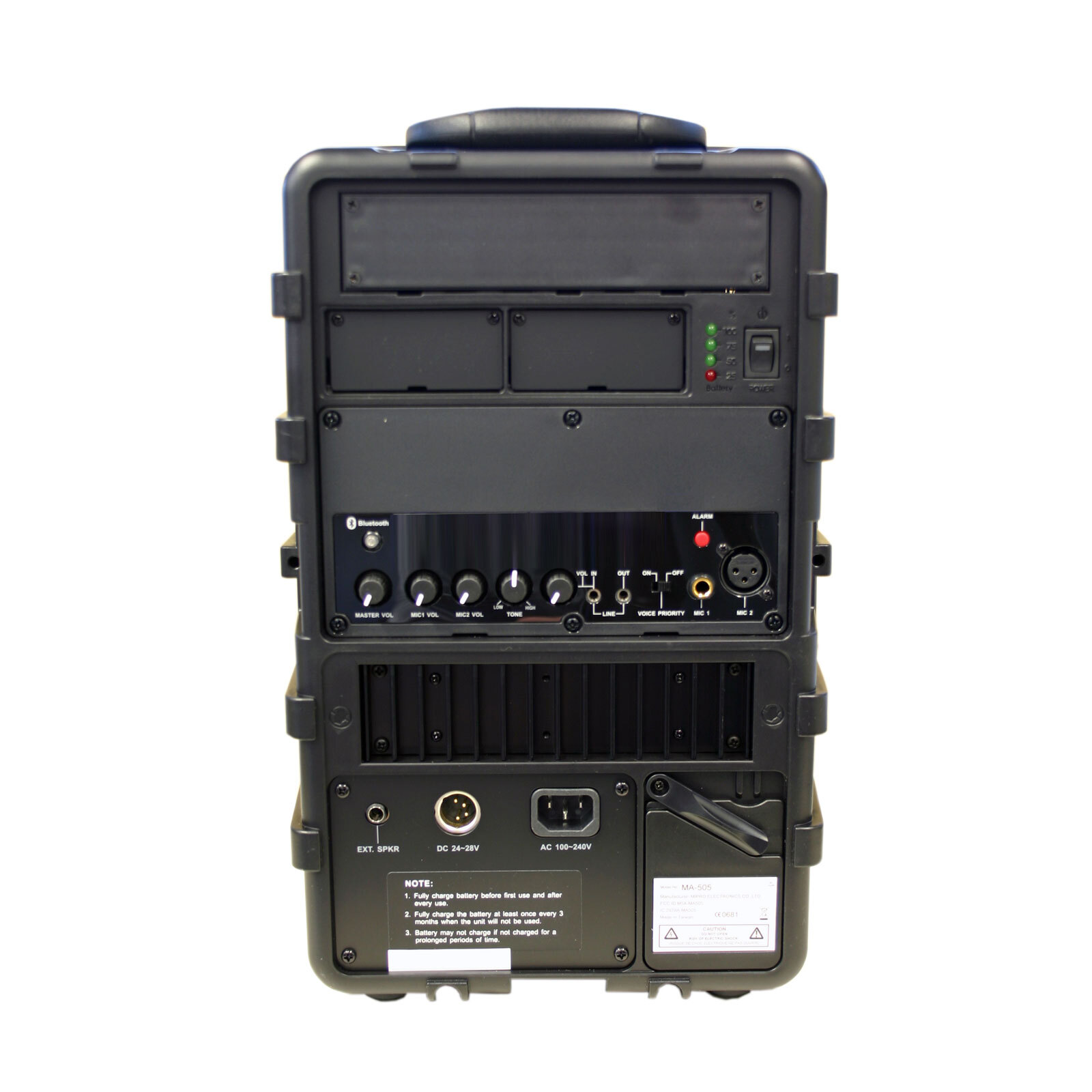

  • Audio Inputs :
    • Wired : XLR balanced & unbalanced 6.3 mm (1/4 ")
    • Line-In : 3.5 mm (1/8 ") mini-jack
    • Bluetooth Connectivity : Yes
  • Audio Output : 3.5 mm (1/8 ") mini-jack
  • Extension Speaker : Unbalanced 6.3 mm (1/4 ") jack
  • Volume : Individual volume control
  • Storage : For AC power cable
  • Power Supply :
    • AC :
      • Built-in 100~240V AC switching power supply (Max. Power Consumption: 165W)
    • DC & Battery :
      • External DC connector.
      • Built-in 22.2V/4.5AH rechargeable lithium (MB-35 x 1)
        • Charge Time : Up to 4 hours (automatic charging management)
        • Standby Time : Up to 8 hours
        • Battery Indicator : 4-level LED indicator (25/50/75/100%)
  • Color : Black
  • Dimensions : (W × H × D) 285 × 400 × 225 mm
  • Weight (battery included) : Approx. 8.5 kg

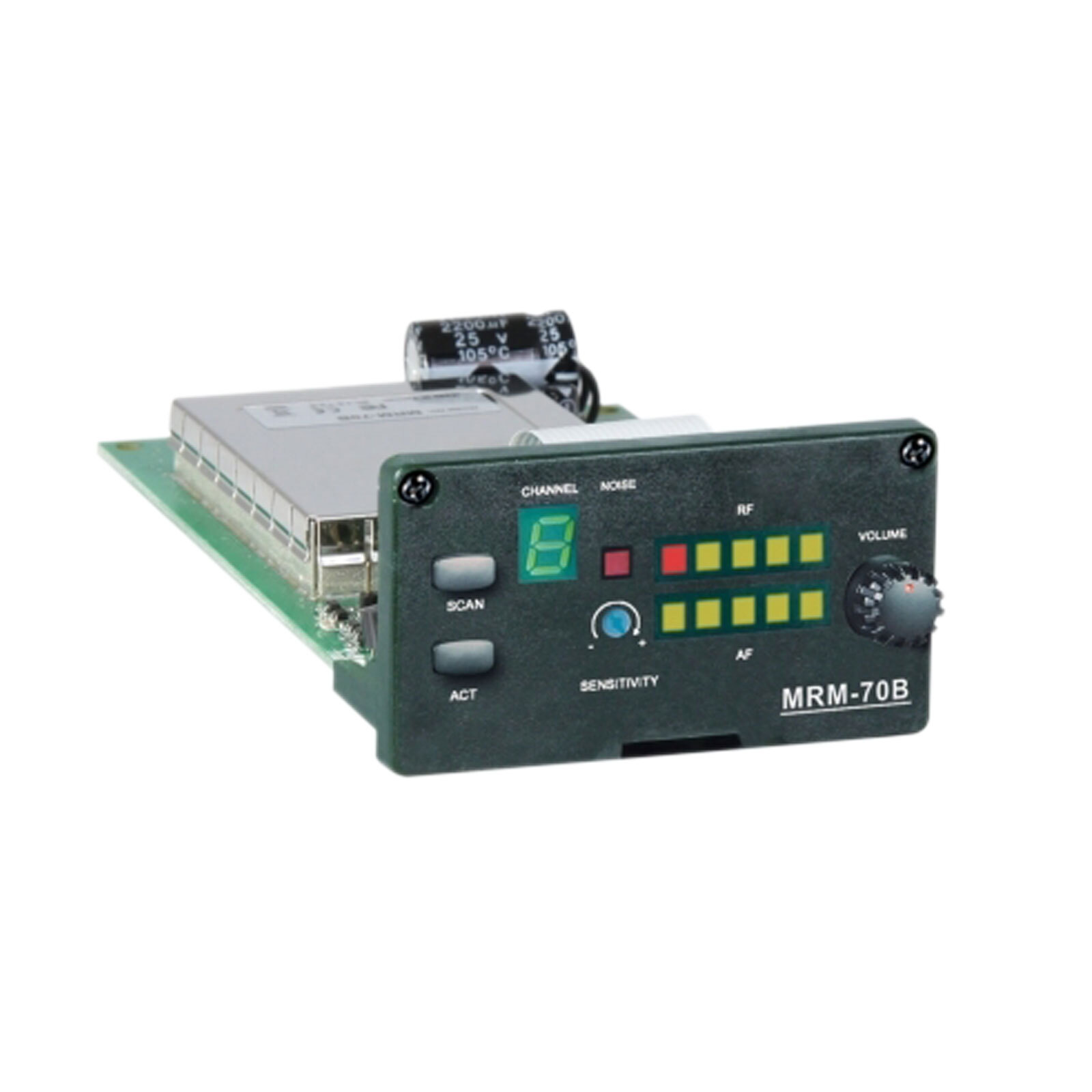

Mipro MRM70 UHF 16ch Receiver Module to suit MA505/707/708.

  • 5NB frequency set (520-544MHz ).

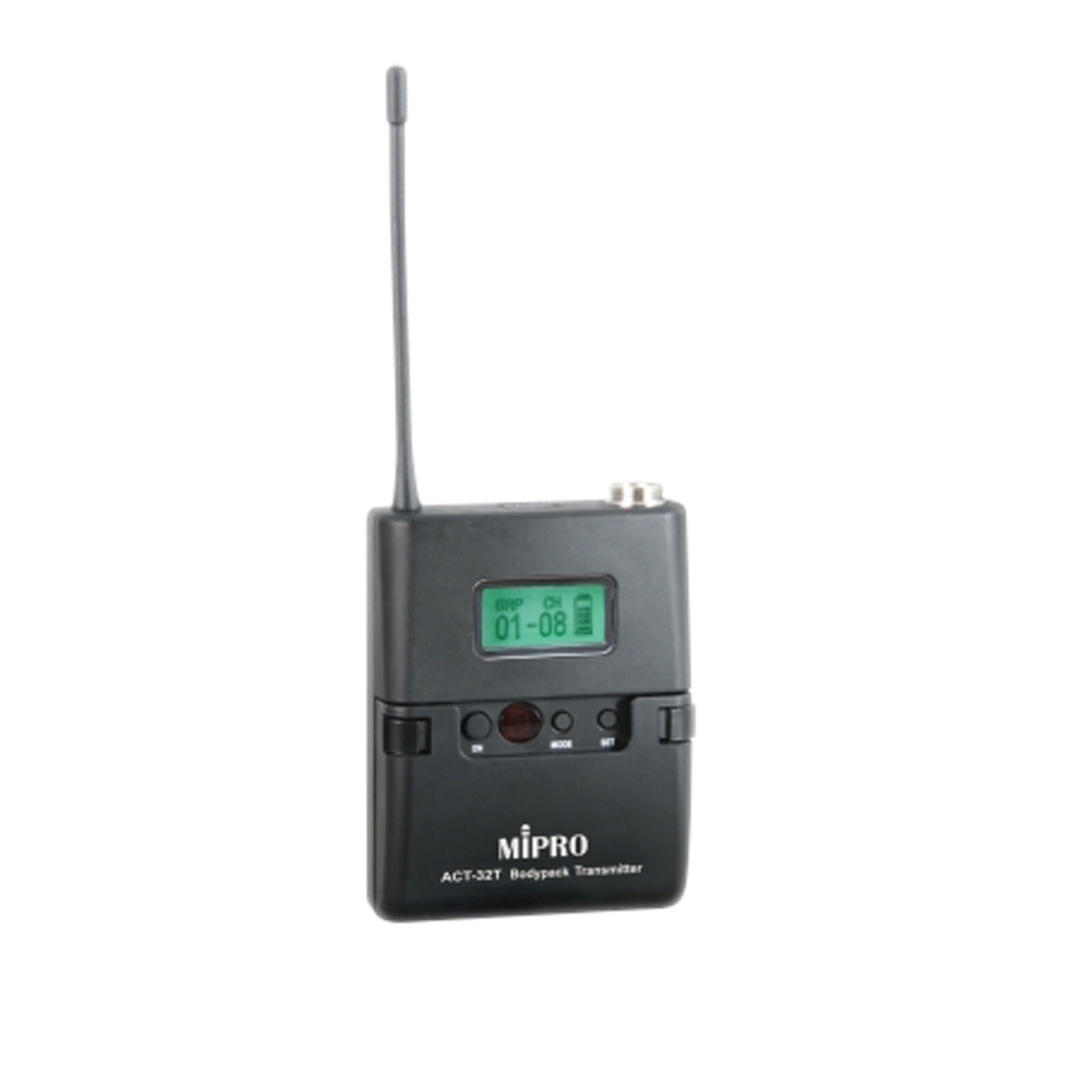

ACT-32T Bodypack Transmitter - frequency set 5NB (520~544MHz). Suitable for Mipro portable PA systems.

Features :

  • Ultra slim bodypack transmitter.
  • On-the-top features include mute button, mini-XLR connector and antenna.
  • Backlit LCD displays all operational parameter information.
  • World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Selectable impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
  • Mini-XLR input with secure screw lock connector.
  • Adjustable belt clip allows wearing transmitter in up or down position.

Technical :

  • Housing : Black rugged plastic
  • Display : Backlit LCD displays all operational parameter information.
  • Frequency Range : UHF 520~544MHz
  • Bandwidth : 24 MHz
  • Deviation : < ± 40 kHz
  • Spurious Emissions : < -55 dBc
  • Gain : 0 dBV
  • Dimensions (W×H×D) : 63 × 82 × 22 mm
  • Net Weight Approx. : 83 g
  • Battery : 2 × AA alkaline
  • Operating Time : Min. 12 hours

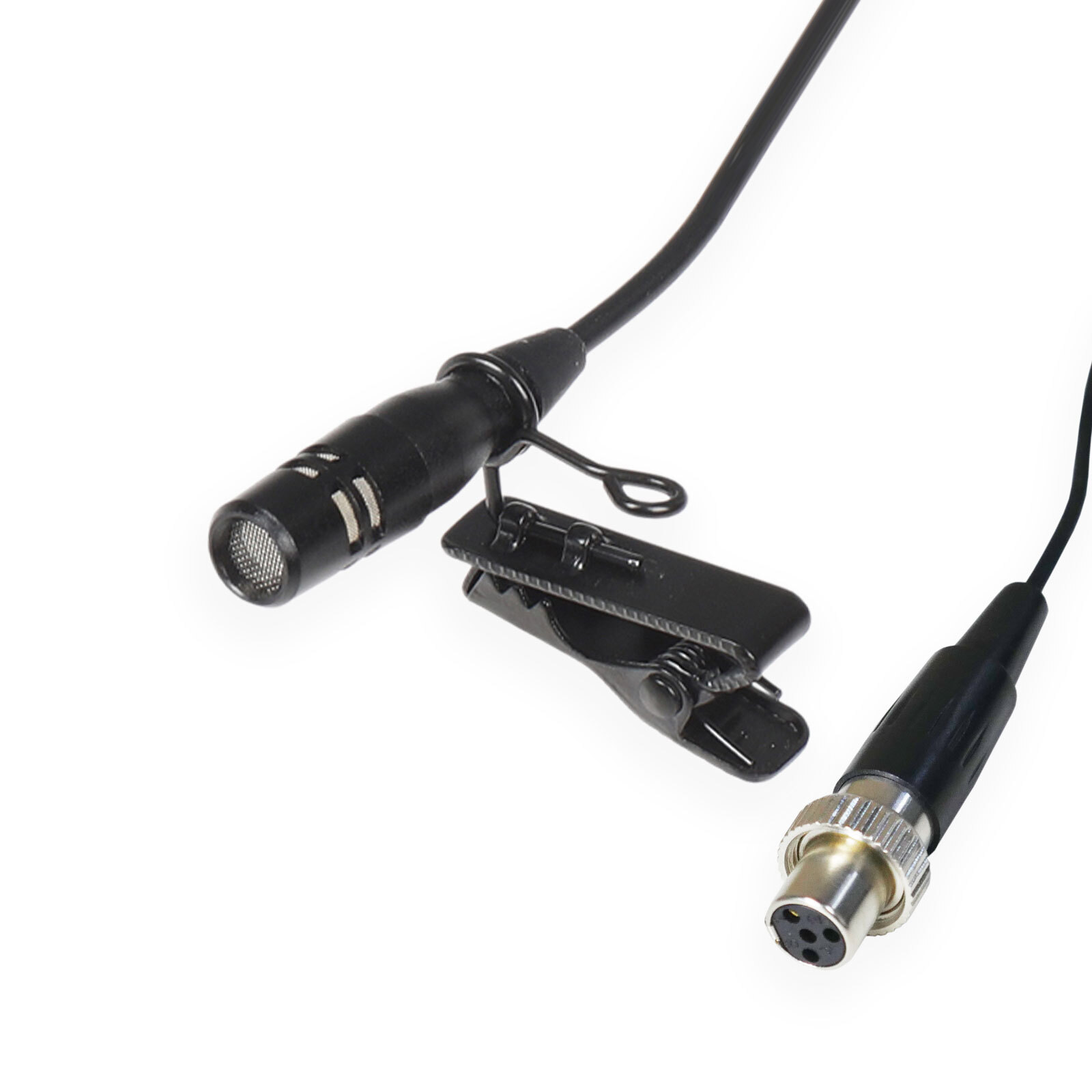

BravoPro Lavalier Microphone for Mipro bodypack transmitters.

Mini lavalier condenser microphone with unidirectional pickup pattern and wide frequency response provides clean and transparent sound quality.

With a tiny capsule design, it is ideally suited for applications that require minimal visual impact.

  • 6mm Capsule
  • Frequency Response : 60~20000Hz
  • Cable :1.2M
  • TA4F (MIPRO) connecton for Mipro wireless systems
  • Black

(KIT-337)

SKU KIT-337
Brand Mipro
Shipping Weight 13.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.630m
Shipping Cubic 0.100800000m3
