Mipro MA300 Portable PA with UHF Wireless Receiver & Handheld Transmitter

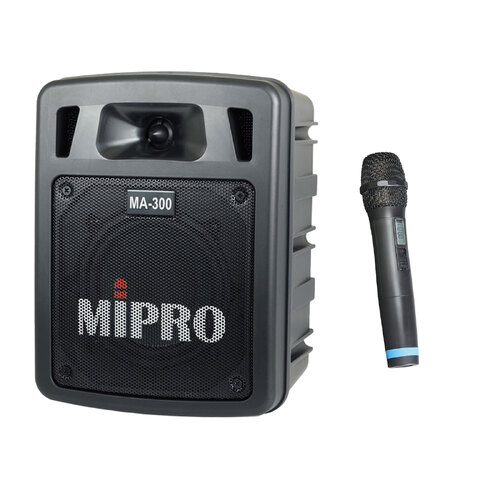

Kit Includes:

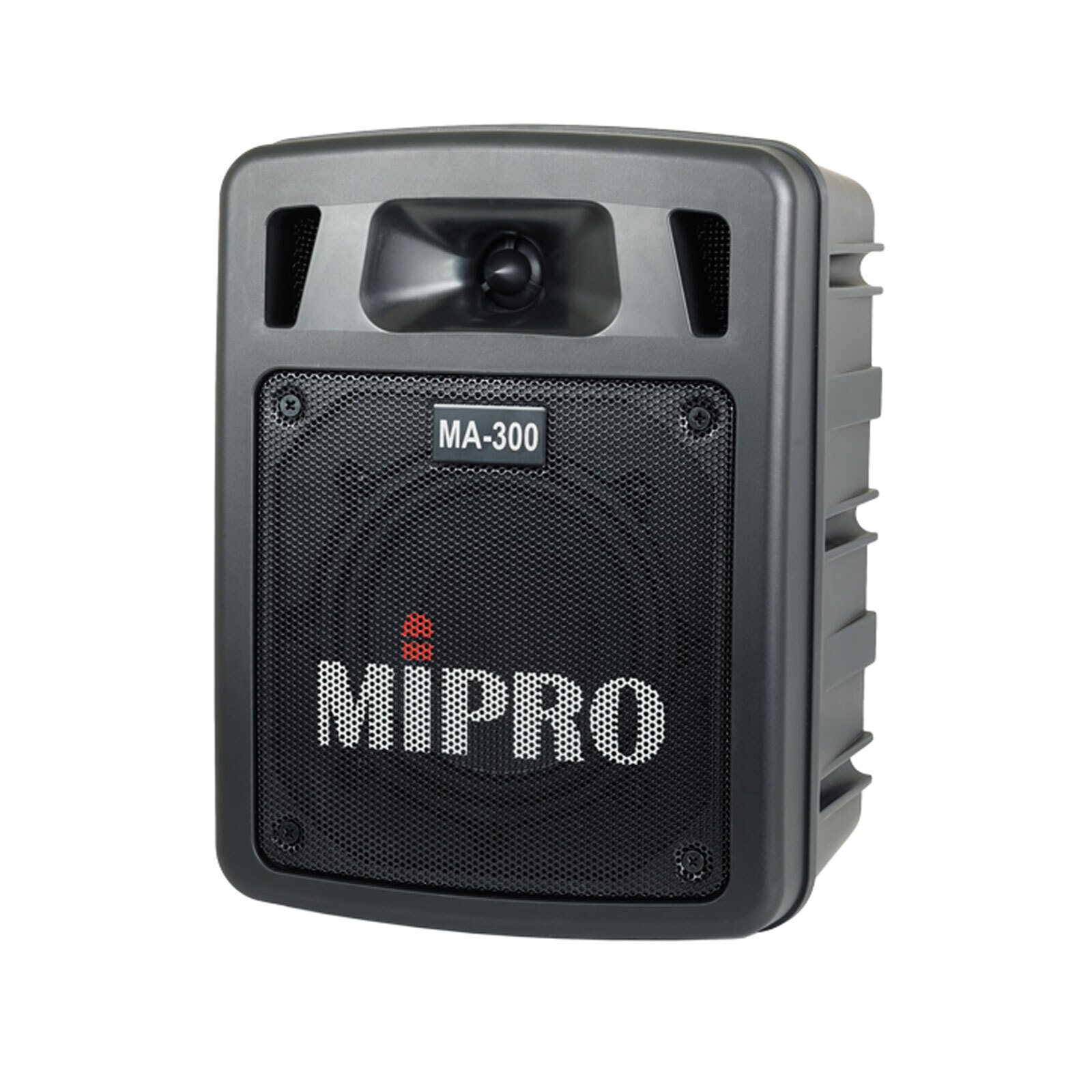

• 1 x Mipro MA300 Portable PA System
• 1 x ACT-32H Handheld Microphone Transmitter

Mipro MA300 Portable PA with Bluetooth & Integrated USB Music Player and Recorder & UHF Wireless Receiver - 5NB Frequency.

Features:

• The two-way speaker cabinet is redesigned to improve the efficiency in treble frequency and delivers a clear and powerful sound effect for both speech and music.
• Easy hand-carrying or stand-mounting makes MA-300 the most ideal megaphone for various applications.
• One UHF  band receiver module for long-distance and reliable reception performance - 5NB frequency.
• Plug-in Bluetooth module, USB player/recorder, built-in echo function, and alarm siren which has a fade-in effect.
• Equipped with audio input mixer. Each audio source has individual volume control.
• Removable Li-ion battery holder for fast insertion and replacement.

Technical:

• Maximum SPL: 105 dB
• Drivers: 1" Treble & 5" Woofer
• Frequency Range: 80 Hz – 18 kHz

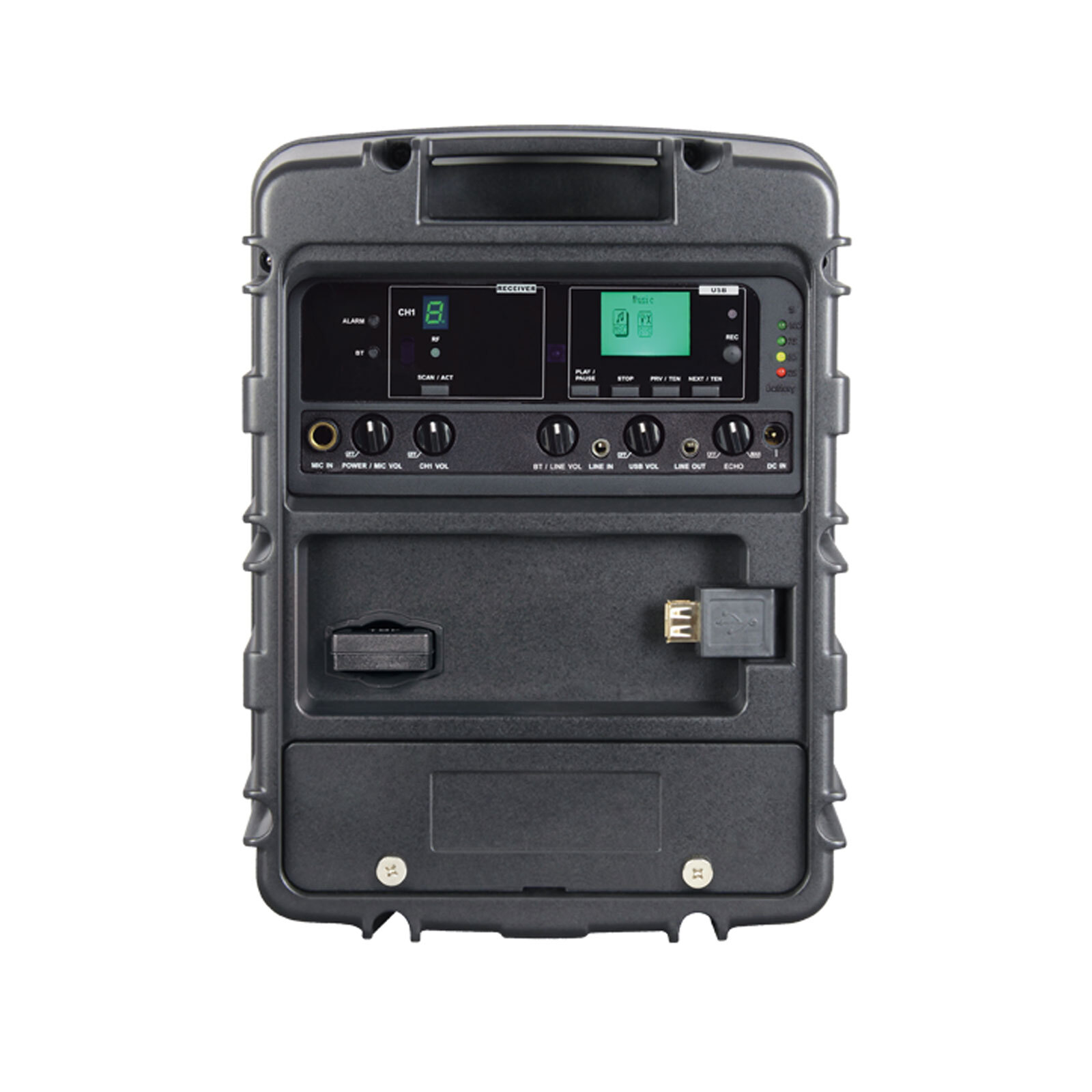

• Audio Inputs:
  • MIC IN: 1 × 1/4" (6.3 mm)
  • LINE IN: 1 × 1/8" (3.5 mm)
• Audio Output:
  • LINE OUT: 1 × 1/8" (3.5 mm)
• Amplifier: Class D
• Output Power: 60 W RMS, 102 W peak
• Receiver Module 1 × UHF module 5NB frequency
• Audio Players: Plug-in Bluetooth module & USB recorder / player
• Other Functions: Echo on mics & siren sound effect
• Power Supply: DC (19 – 24 V) socket for external AC (100 – 240 V) power supply
• Battery: 4 × 18650 Li-ion batteries (MB-14)
• Battery Indicator: 4-segment indicator (25/50/75/100%)
• Standby Time: Up to 10 hours
• Dimensions: 209 × 278 × 165 mm (W × H × D)
• Weight: Approx. 2.7 kg (batteries included)

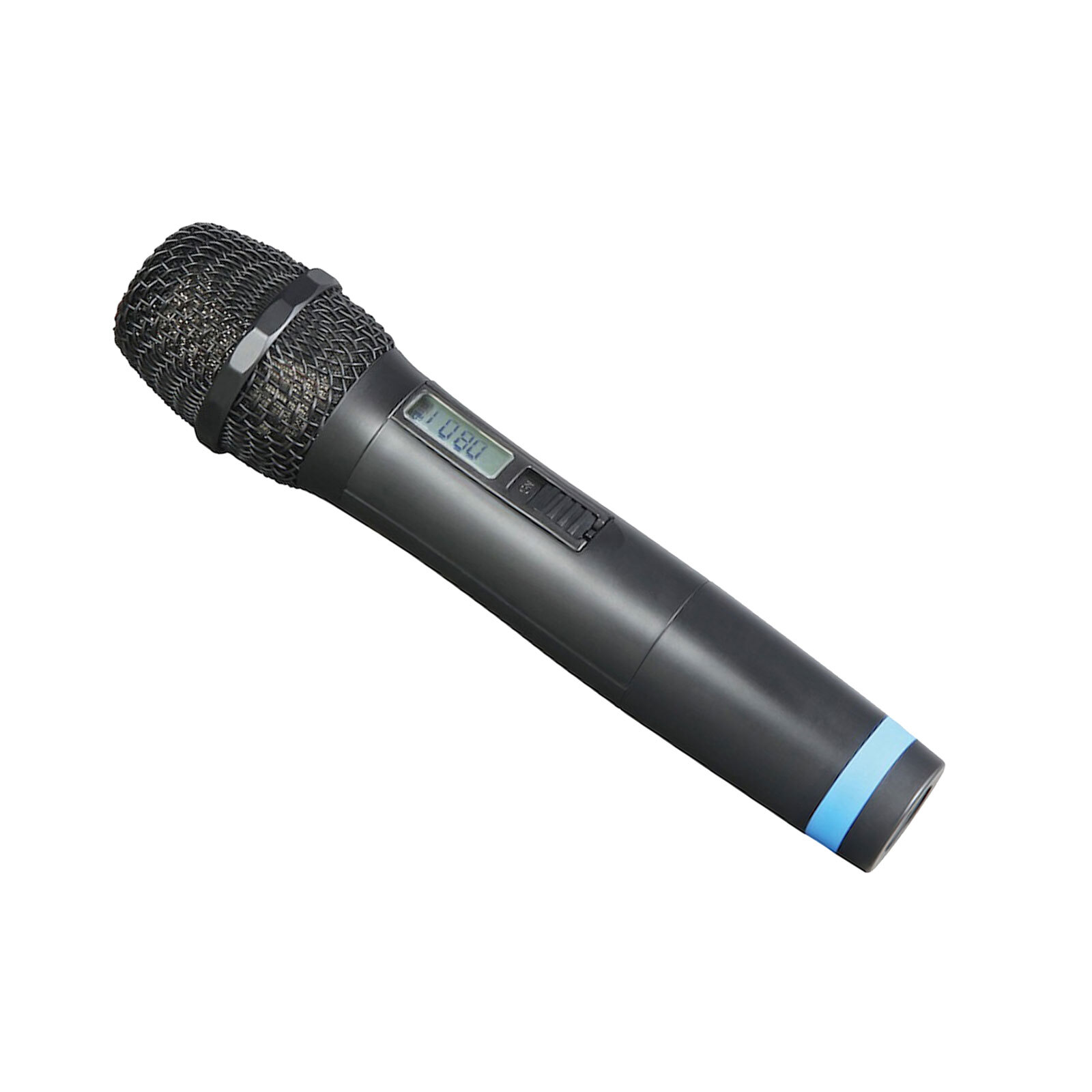

ACT-32H Handheld Microphone Transmitter - frequency set 5NB (520~544MHz)

Features :

• Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
• Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice.
• Patented capsule suspension design virtually eliminates vibration and handling noises.
• Built-in high-efficiency antenna.
• Backlit LCD displays all operational parameter information.
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver.

Technical :

• Housing : Black-color rugged plastic housing
• Display : LCD displays all operational parameter information.
• Frequency Range : UHF 520~544MHz
• Bandwidth : 24 MHz RF
• Deviation : < ± 40 kHz
• Spurious Emissions : < -55 dBc
• Gain : 0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion.
• Dimensions (Ø × L) : 51 × 234 mm
• Net Weight : Approx. 251 g
• Battery : 2 × AA alkaline
• Operating Time : Min. 12 hours
