AKG Mini Beltpack Wireless Instrument System US25-A with Unidirectional Headworn Microphone

fixed single frequency 537.500MHz

$359.00
In Stock

HDAP (High Definition Audio Performance)

30 hours off a single AA battery

Single fixed frequency

Plug & Play

1 fixed frequency, 537.500 MHz (freq. set 25-A)

Calculate Shipping



1 x AKG Mini Beltpack Wireless Instrument System US25-A with Unidirectional Headworn Microphone delivered to , AU


Collect - $0.00
Free in-store pick up from our Port Melbourne showroom

WMS 40 Mini instrumental system provides brilliant sound and ease of use at an unbeatable price/performance ratio. Unique HDAP (High Definition Audio Performance) technology ensures the best possible, most realistic sound at any time.

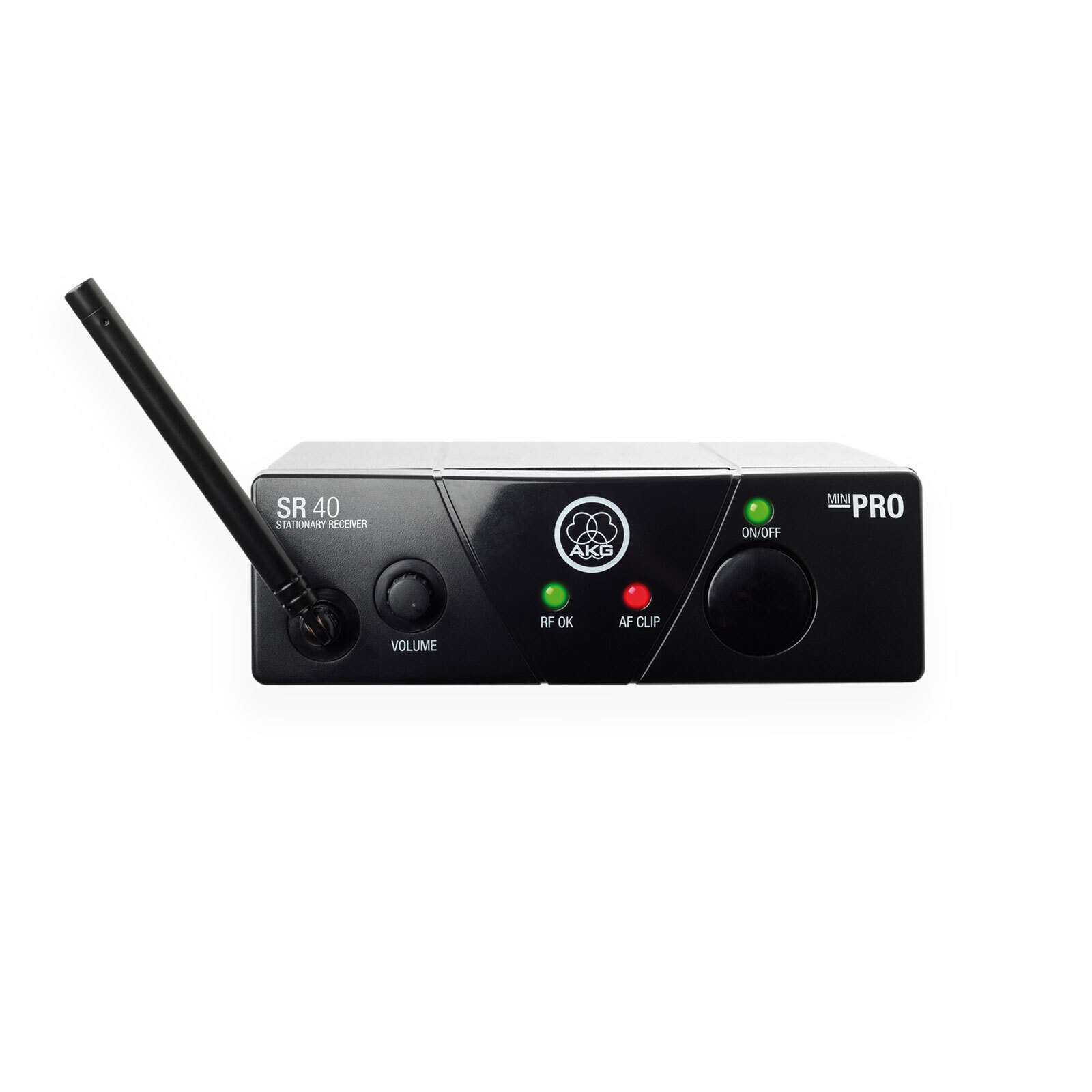

The SR 40 Mini receiver provides three status LEDs indicating ON/OFF status, received signal strength (RF OK), and audio clipping (AF CLIP). The VOLUME control sets the level at the 1/4 " output jack. The supplied switched mode power supply operates on any AC voltage from 110 to 240 VAC.

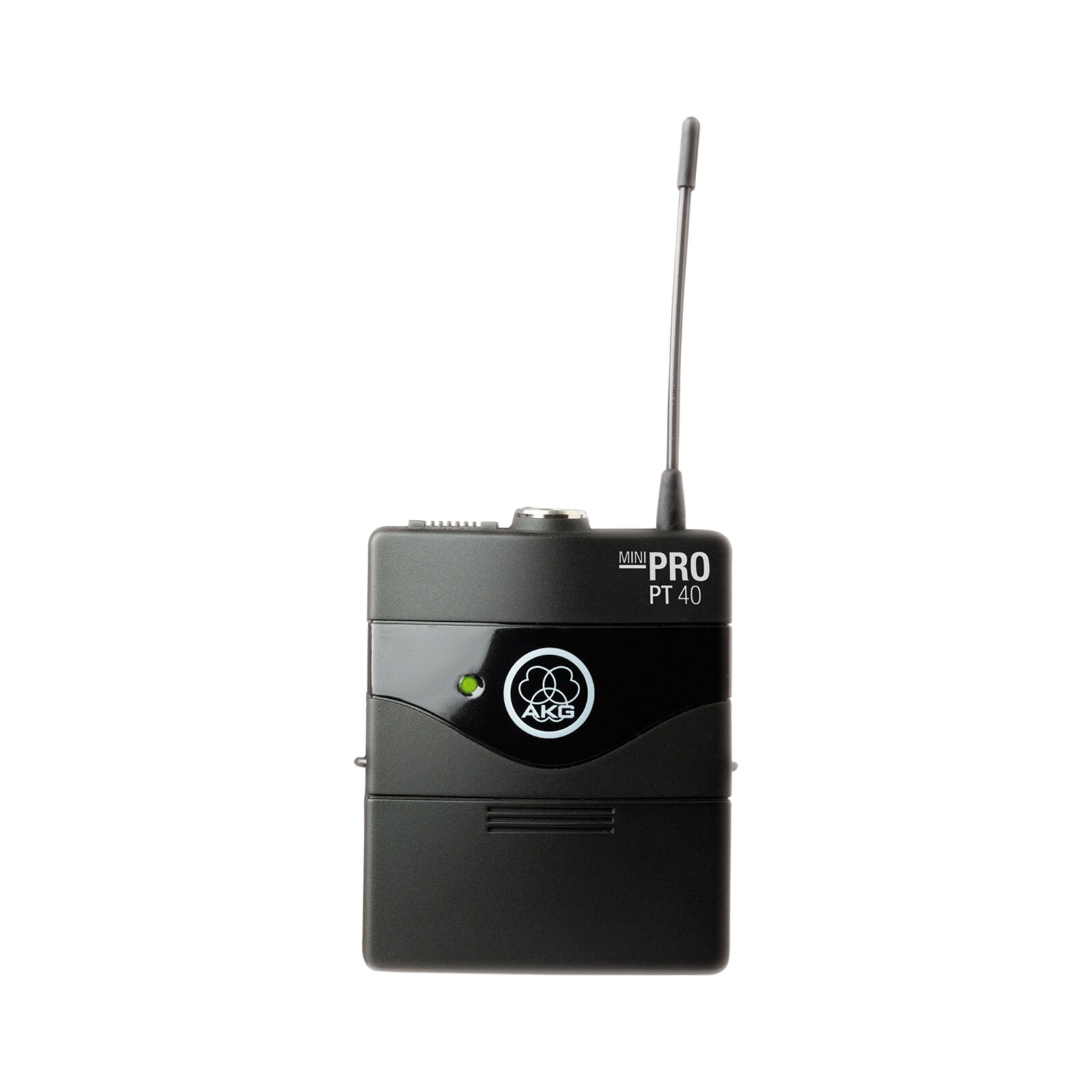

The PT 40 Mini bodypack is probably the smallest and lightest transmitter in its class. A reliable mini XLR output allows you to connect every compatible AKG miniature microphone. A single AA size battery will do to power both the transmitter and a condenser microphone connected to it.

Battery life for each WMS 40 Mini transmitter is the same legendary "30 hours off a single AA battery" as for the WMS 40 models, reducing the need to replace batteries and thus saving real money in the long run.

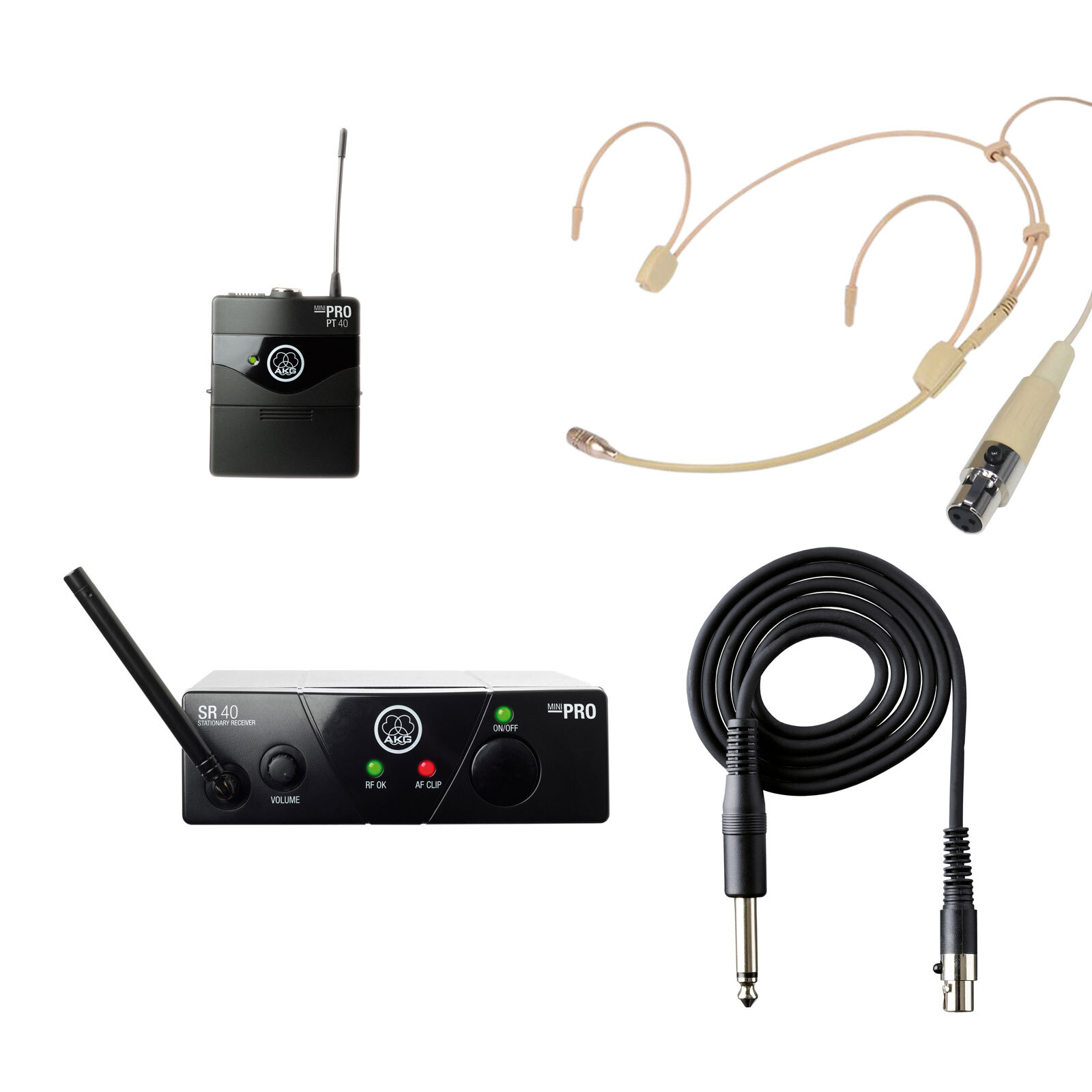

System includes :

  • 1 x SR40 receiver
  • 1 x PT40 transmitter

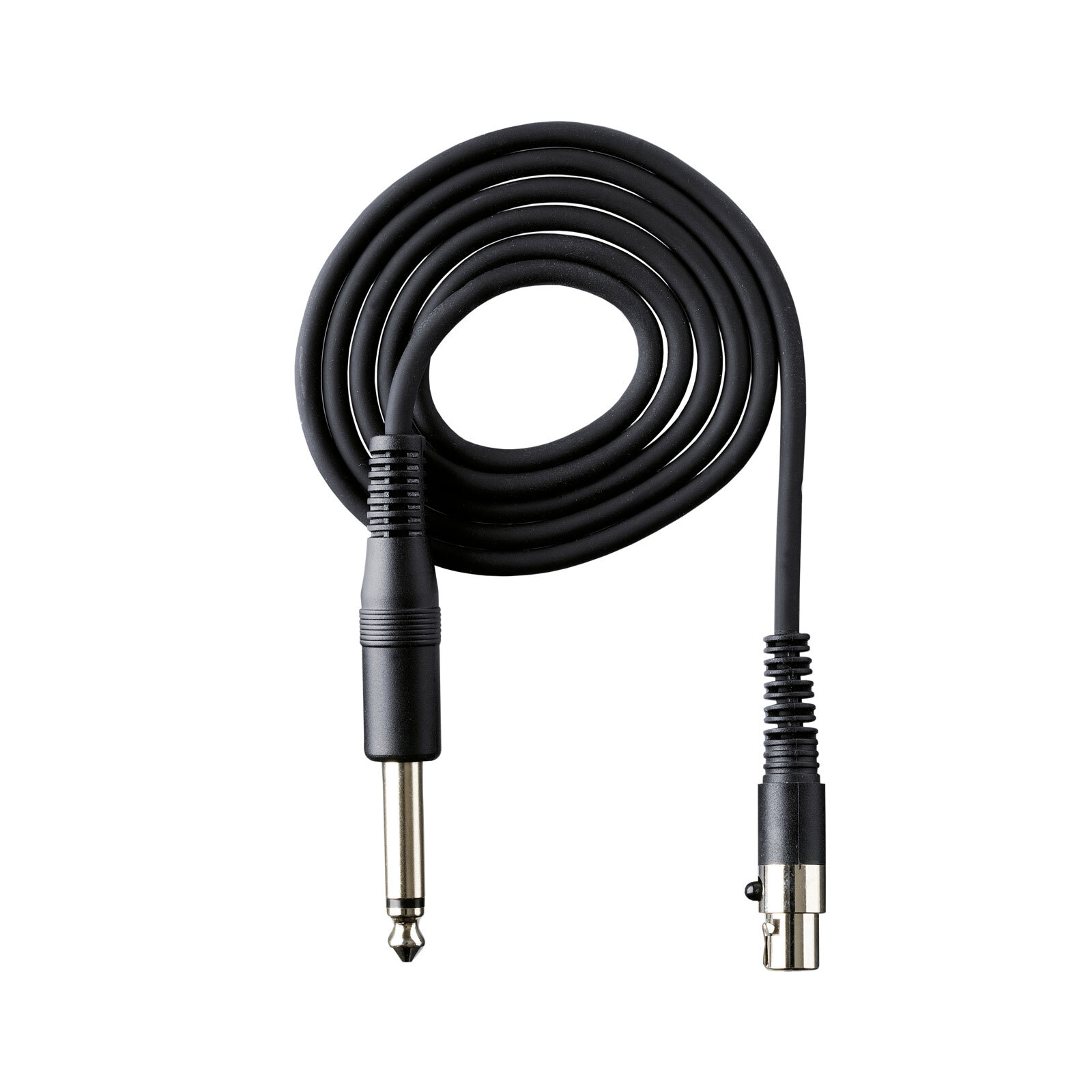

  • 1 x 900mm instrument cable
  • 1 x BravoPro DHF06 unidirectional headworn microphone

Features :

  • HDAP (High Definition Audio Performance)
  • 30 hours off a single AA battery
  • Single fixed frequency
  • Plug & Play

SR40 Receiver Specifications :

  • Carrier frequency : 1 fixed frequency, 537.500 MHz (freq. set 25-A)
  • Audio bandwidth : 40 HZ to kHz
  • THD : typ. 0,8 % (at 1 kHz)
  • Signal/noise ratio : typ. 110 dB(A)
  • Audio outputs : bal. 1/4" jack, output level adjustable, at rated deviation: 500 mV rms.
  • Power supply : 110/240 VAC
  • Dimensions : 133 x 43 x 132 mm
  • Net weight : 581 g (1.3 lbs.)

PT40 Transmitter Specifications :

  • Carrier frequency : 1 fixed frequency, 537.500 MHz (freq. set 25-A)
  • Audio bandwidth : 40 HZ to kHz
  • THD : typ. 0,8 % (at 1 kHz)
  • Signal/noise ratio : typ. 110 dB(A)
  • RF output power : typ. 10 mW (ERP)
  • Battery life : typ. 30 h (for 2200 mAh) with 1 AA size battery
  • Dimensions : 60 x 75.5 x 30 mm
  • Net weight : 60 g

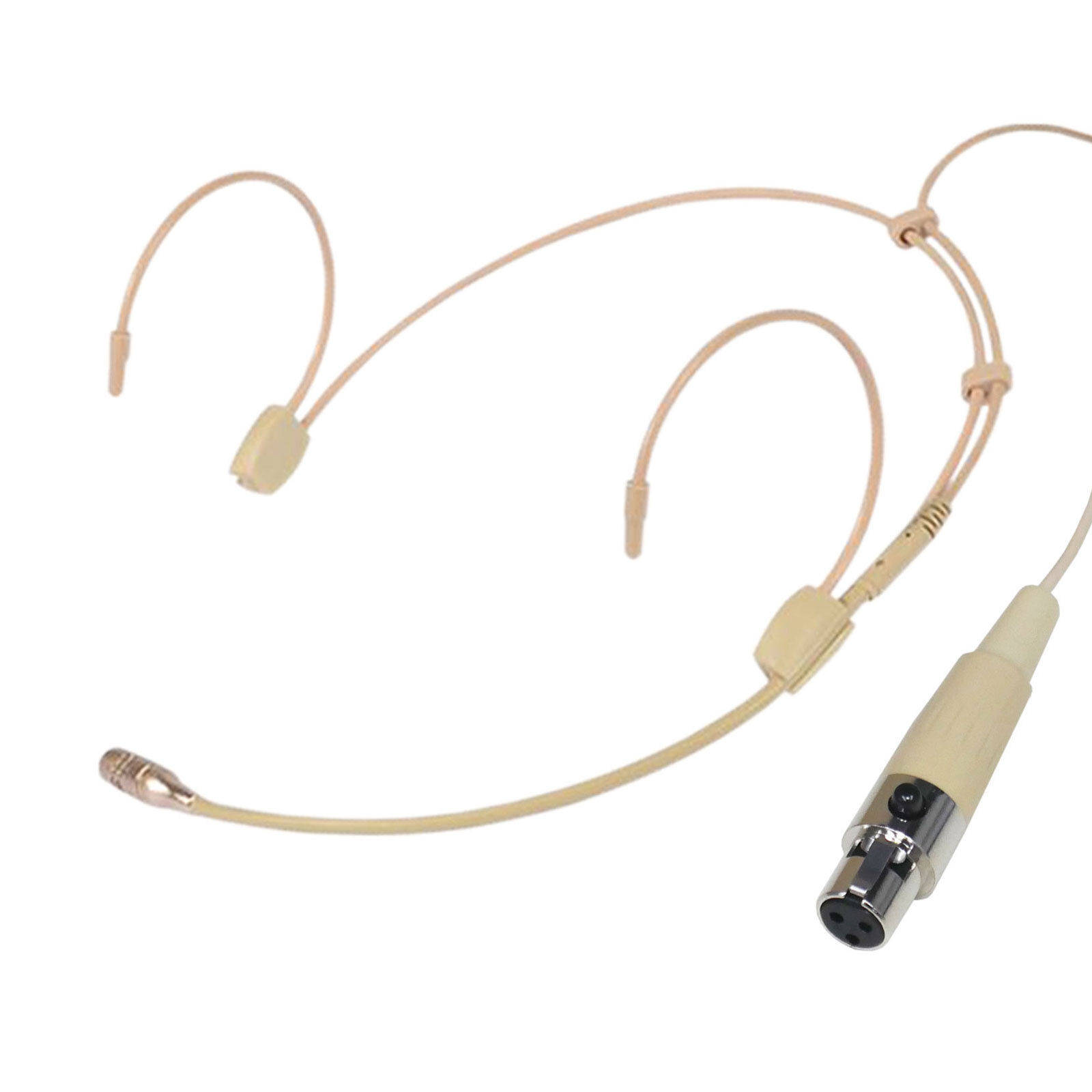

​​​​​BravoPro DHF06 headworn microphone is a luxurious headset with a unidirectional pickup pattern providing clean and transparent sound quality. Perfectly suited for both spoken word and vocal performance applications.

An elastic steel frame covered by soft rubber material makes it perfect for long-time use and a flexible gooseneck allows precise placement of the microphone to capture the perfect sound.

  • Super Flexible frame.
  • 6mm capsule.
  • TA3F connection for use with AKG wireless systems.
  • Beige Colour.

(KIT-346)

SKU KIT-346
Brand AKG
Shipping Weight 5.0000kg
Shipping Width 0.290m
Shipping Height 0.260m
Shipping Length 0.290m
Shipping Cubic 0.021866000m3
