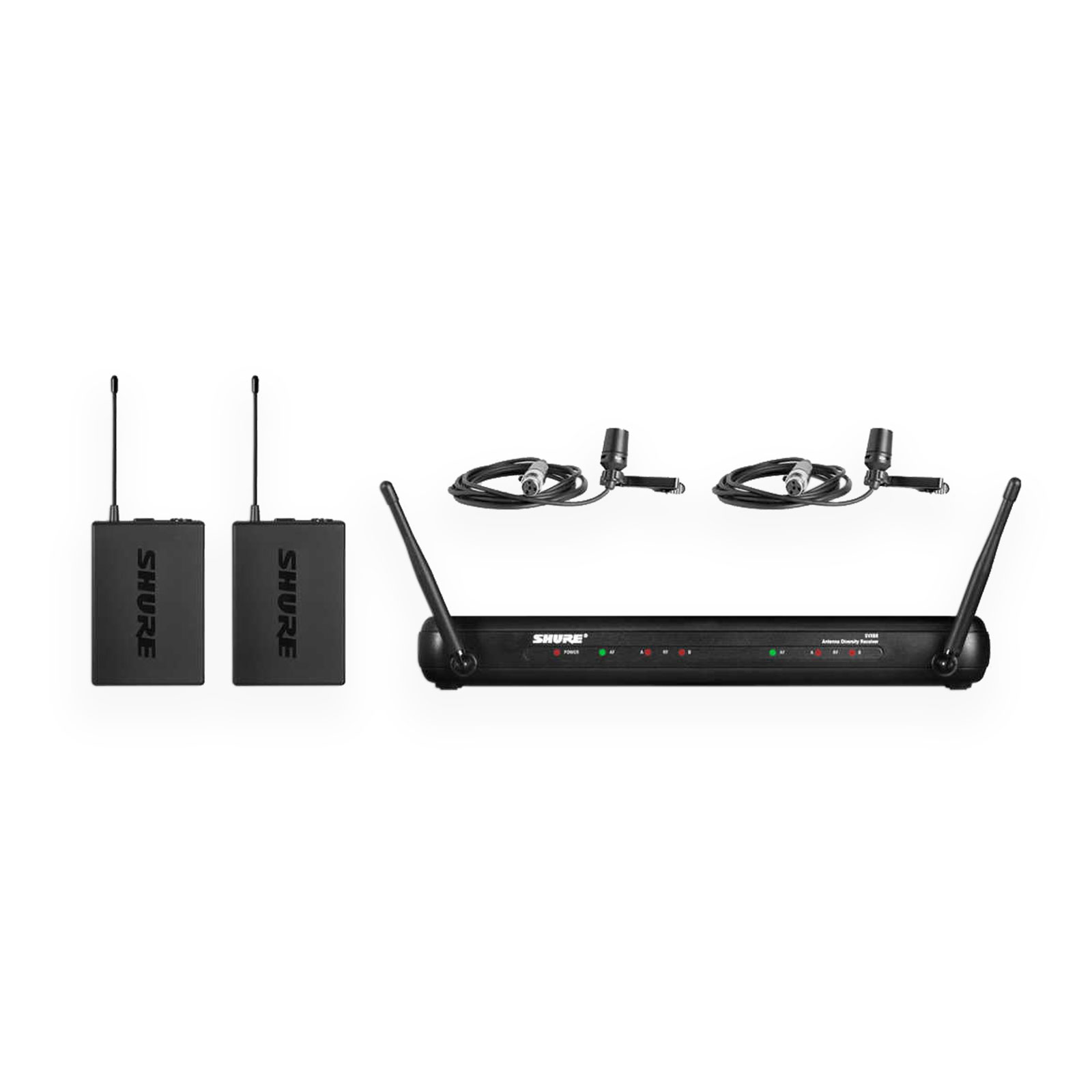

Shure SVX188CVL Dual-Channel Presenter System with Lavalier Microphones
The Shure SVX188CVL Dual Wireless Lavalier System Includes :
1 x SVX88 Receiver
2 x SVX1 Bodypack Transmitters
2 x CVL Lav Condenser Mics

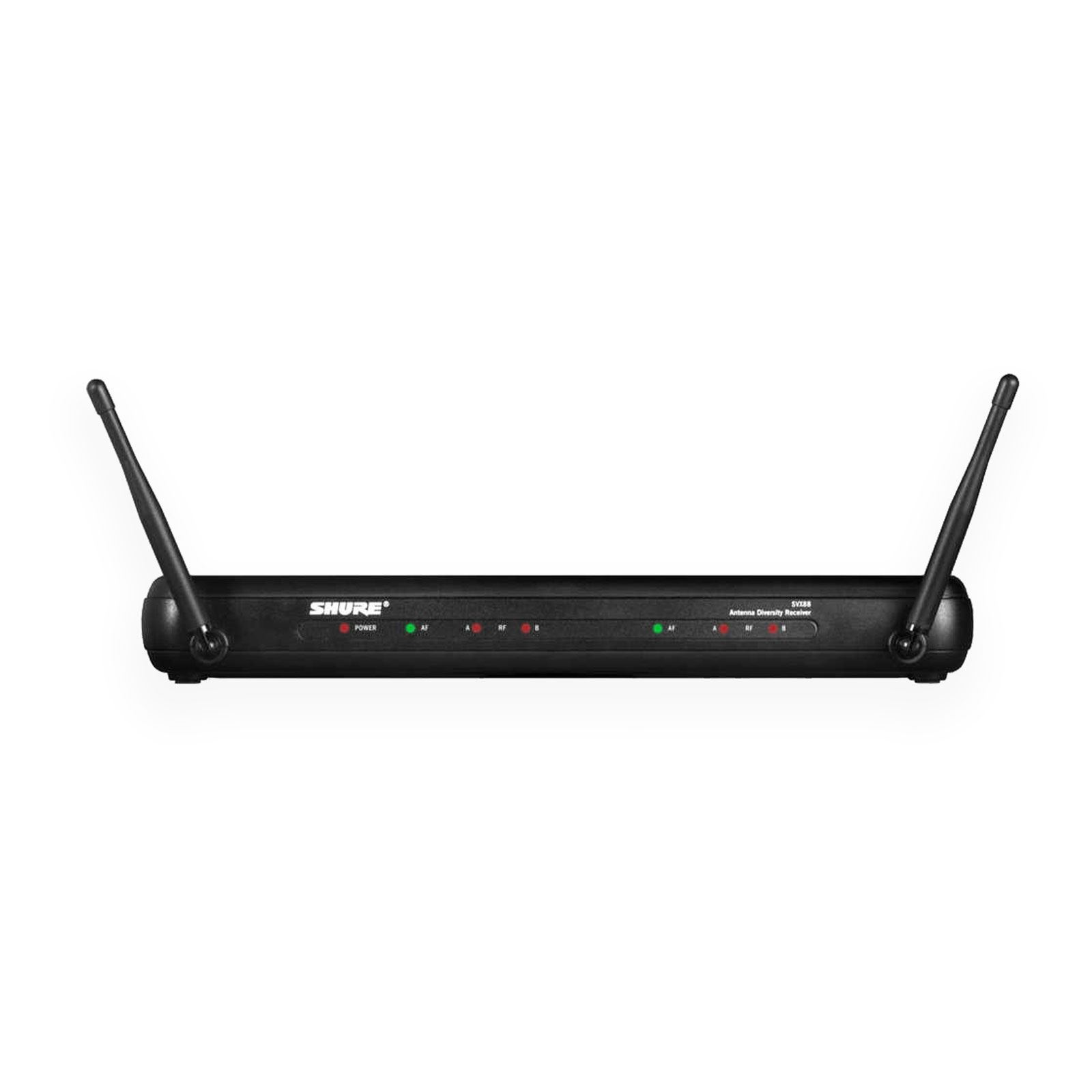

SVX88 Receiver
Features :
- Up to 8 selectable channels
- Up to 4 compatible systems
- Operational Frequency : 558 - 570MHz
- Antenna Switching : Diversity
- Adjustable Squelch Level
- 1/4" and XLR output
Specifications :
- Dimensions : 32 mm X 168 mm X 104.5 mm
- Weight: : 245 g
- Housing : Molded ABS
- Audio Output Level :
- XLR connector into 100 k ohm load : -16 dBV (MIC)
- 6.35 mm connector into 100 k ohm load : -22 dBV (MIC)
- Output Impedance :
- XLR connector : 600 ohm
- 6.35 mm connector : 600 ohm
- Sensitivity : –105 dBm for 12 dB SINAD, typical
- Image Rejection : >50 dBm, typical
- Power Requirements : 12 to 18 V DC @ 130 mA, included external power supply

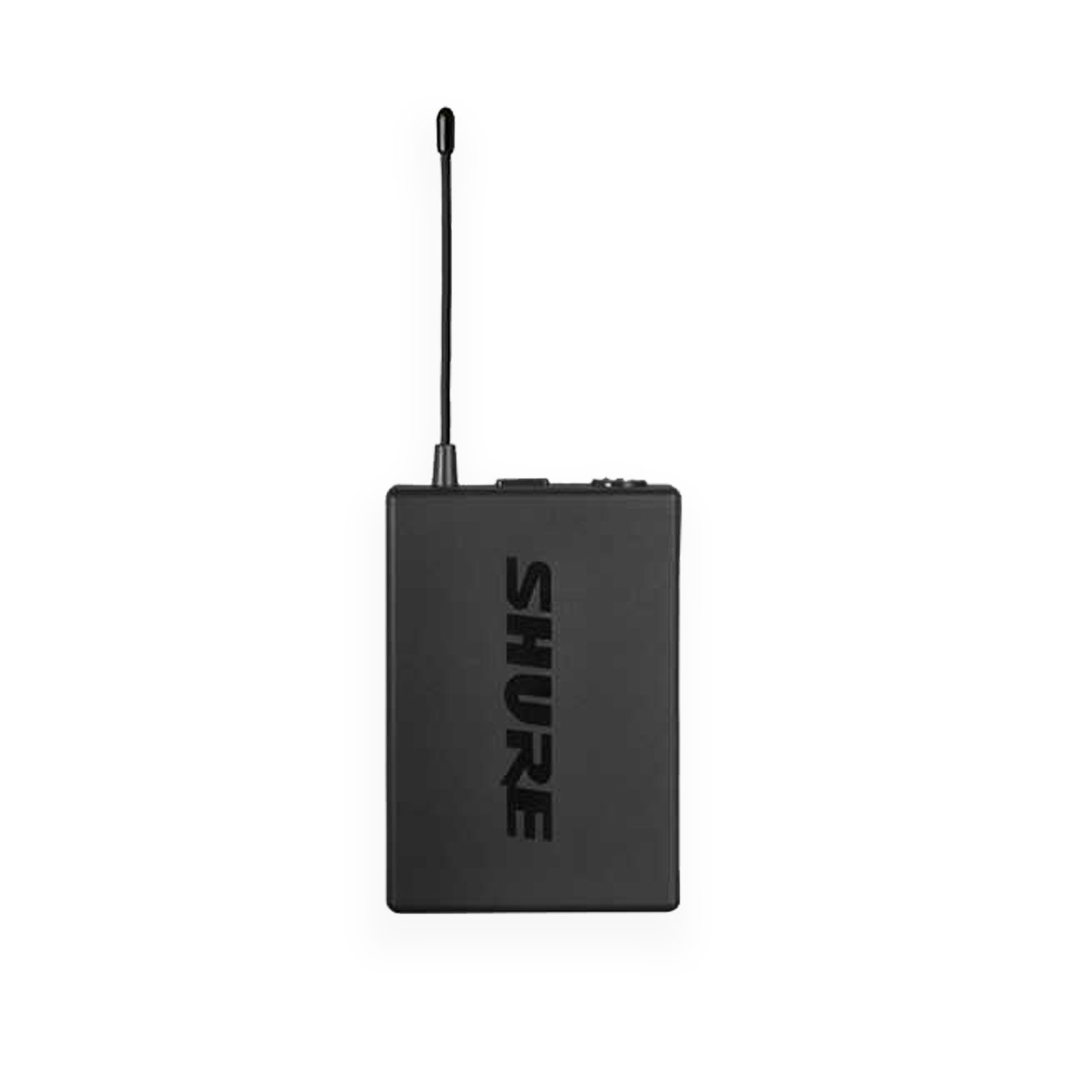

SVX1 Transmitter
Specifications :
- Transmitter Type: Bodypack
- Dimensions : 108 mm height X 64 mm width X 19 mm depth
- RF Output Power : 10 mw
- Battery endurance : 10 h
- Weight : 90 g

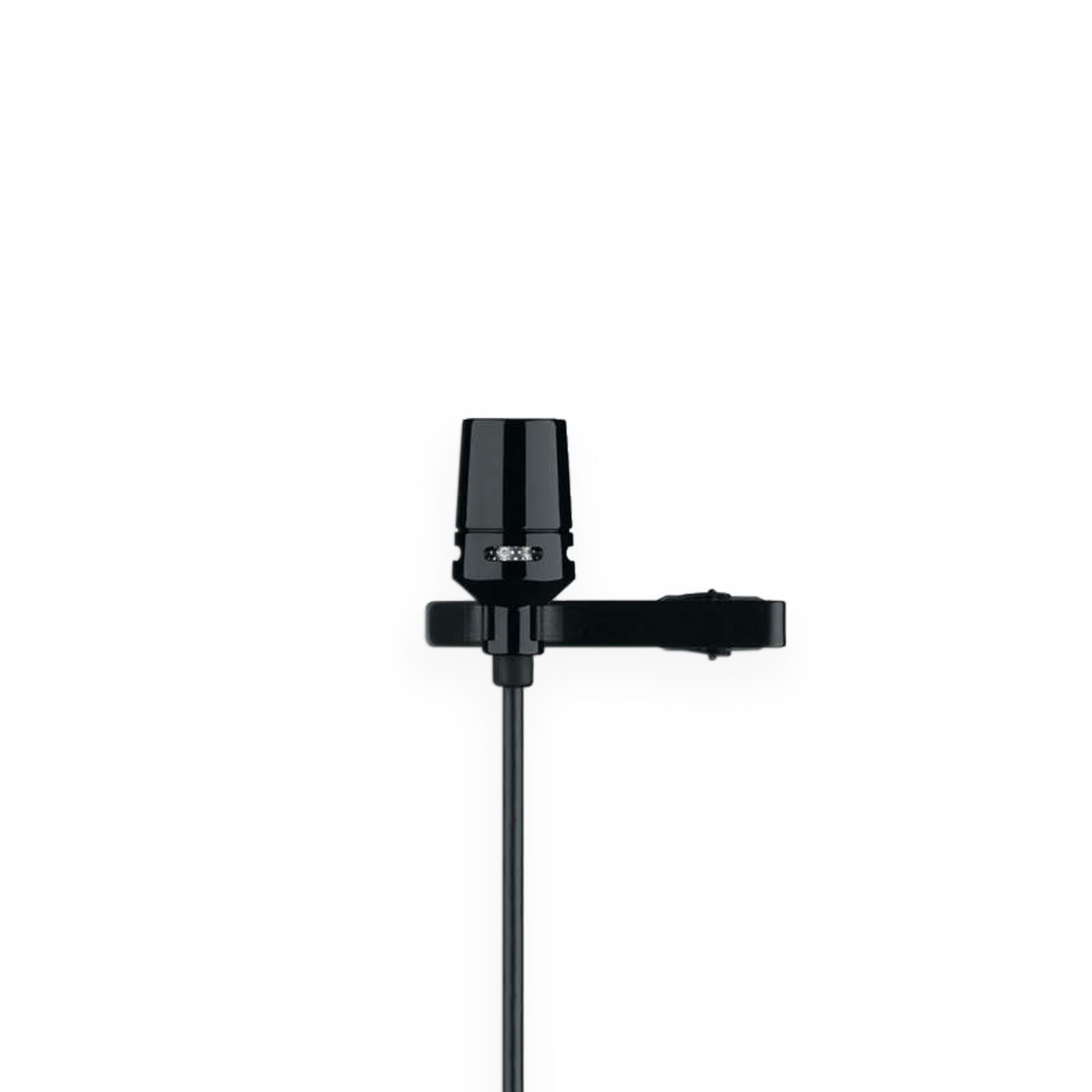

CVL Lavalier Microphone
Features :
- Miniature clip-on lavalier mic
- Permanently charged electret condenser element
- Cardioid polar pattern rejects unwanted noise
- Included tie clip allows for hands-free use, perfect for presenters
- Included windscreen reduces plosives, wind and breath sounds
- Tailored frequency response optimized for speaking and presentations
- TA4F (TQG) connector
Specifications :
- Transducer Type : Condenser
- Polar Pattern : Cardioid
- Frequency Response : 50 Hz - 20 KHz
- Sensitivity (dBV/Pa) : -43.5 dBV/Pa
- Weight : 25 g
- Output Impedance : 600 ohm @ 1 kHz
- Signal-To-Noise Ratio [1 ] : 72 dB @ 1 kHz
- Maximum SPL [1] : 139.0 dB 1000 ohm load, @ 1% THD
- Dynamic Range [1] : 117.0 dB @ 1 kHz, 1000 ohm load
- Equivalent Output Noise [1] : 22 dB Typical, A-Weighted
- Power Requirements : +5 V DC (nominal), 10 V maximum (DC bias)
- Cable : 1.3 m
- Connector : TA4F
(SHR-SVX188CVL)
SKU | SHR-SVX188CVL |
Barcode # | 042406362009 |
Brand | Shure |
Shipping Weight | 3.0000kg |
Shipping Width | 0.320m |
Shipping Height | 0.090m |
Shipping Length | 0.420m |
Shipping Cubic | 0.012096000m3 |
