Sennheiser XSW-1 UHF Wireless Guitar / Bass Instrument System

The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

• Compact bodypack transmitter, rugged instrument cable
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

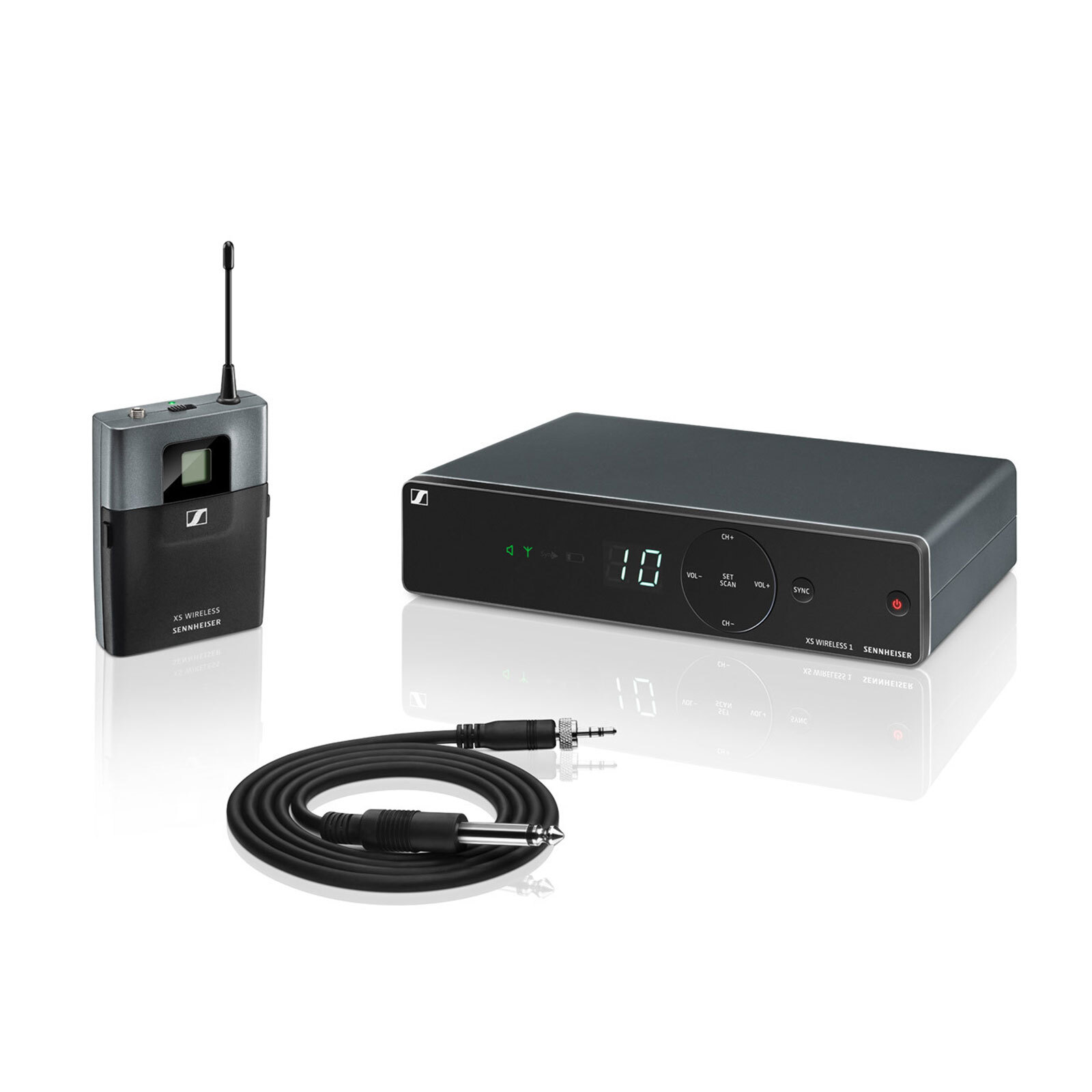

What's in the Box

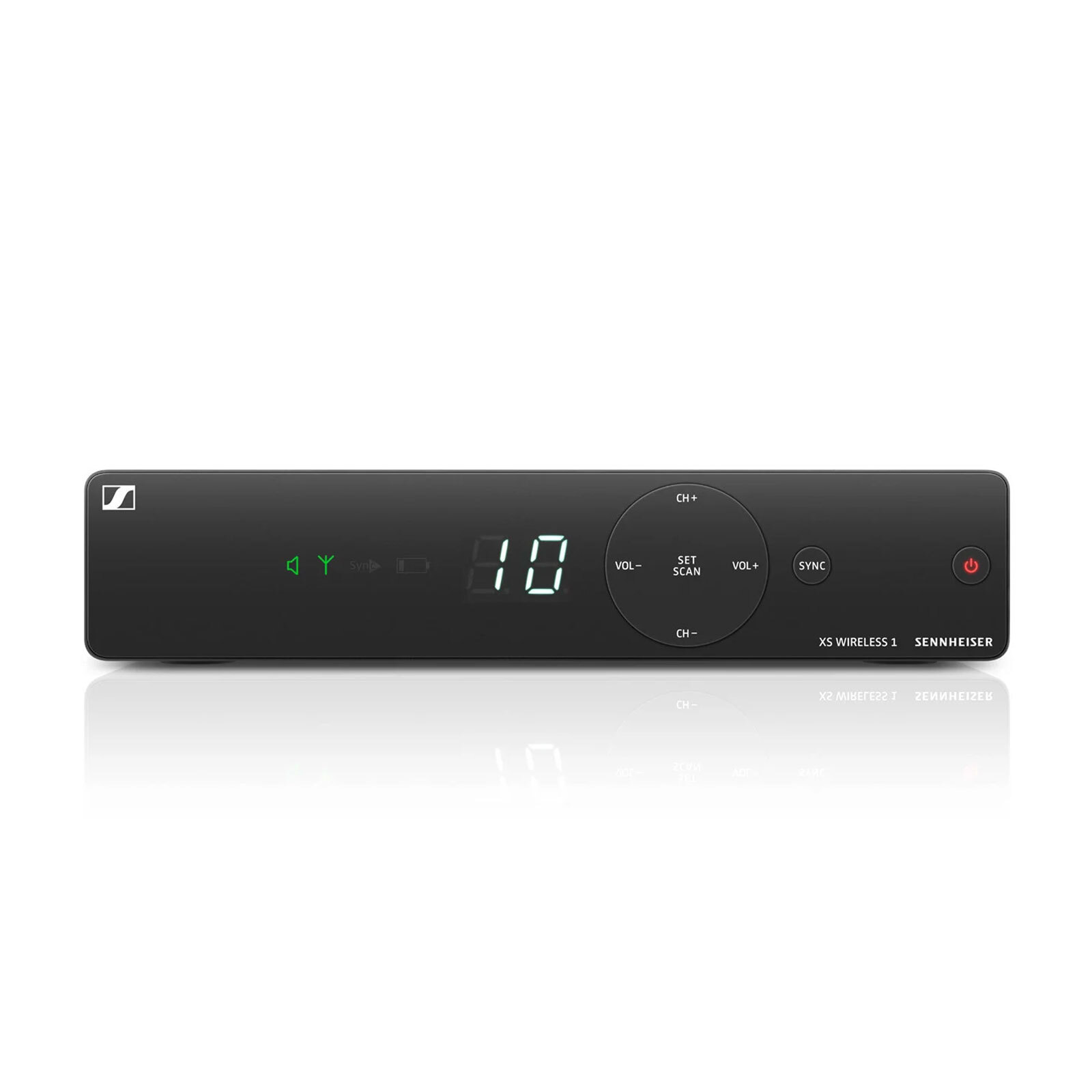

• 1 x receiver EM-XSW 1

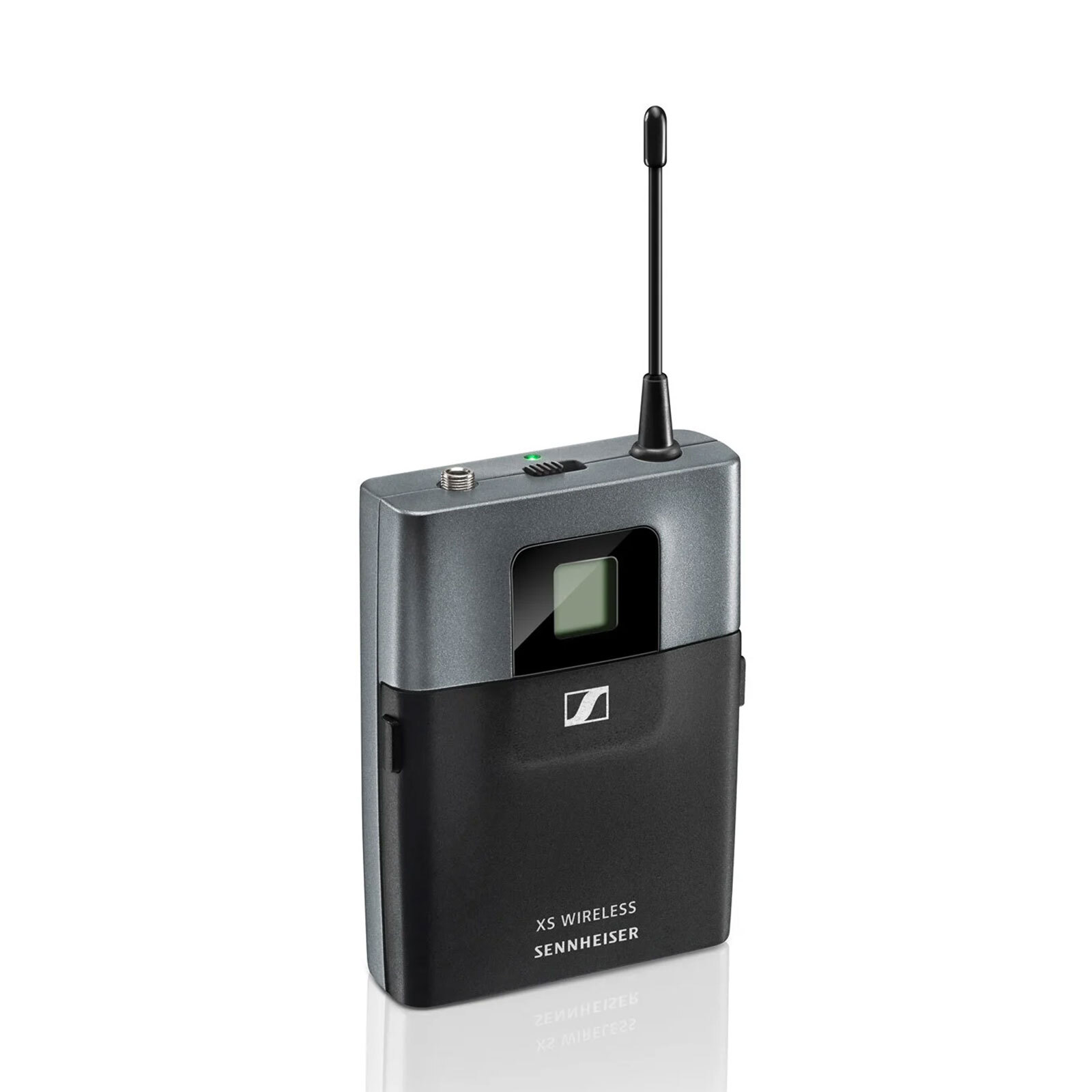

• 1 x bodypack transmitter SK-XSW

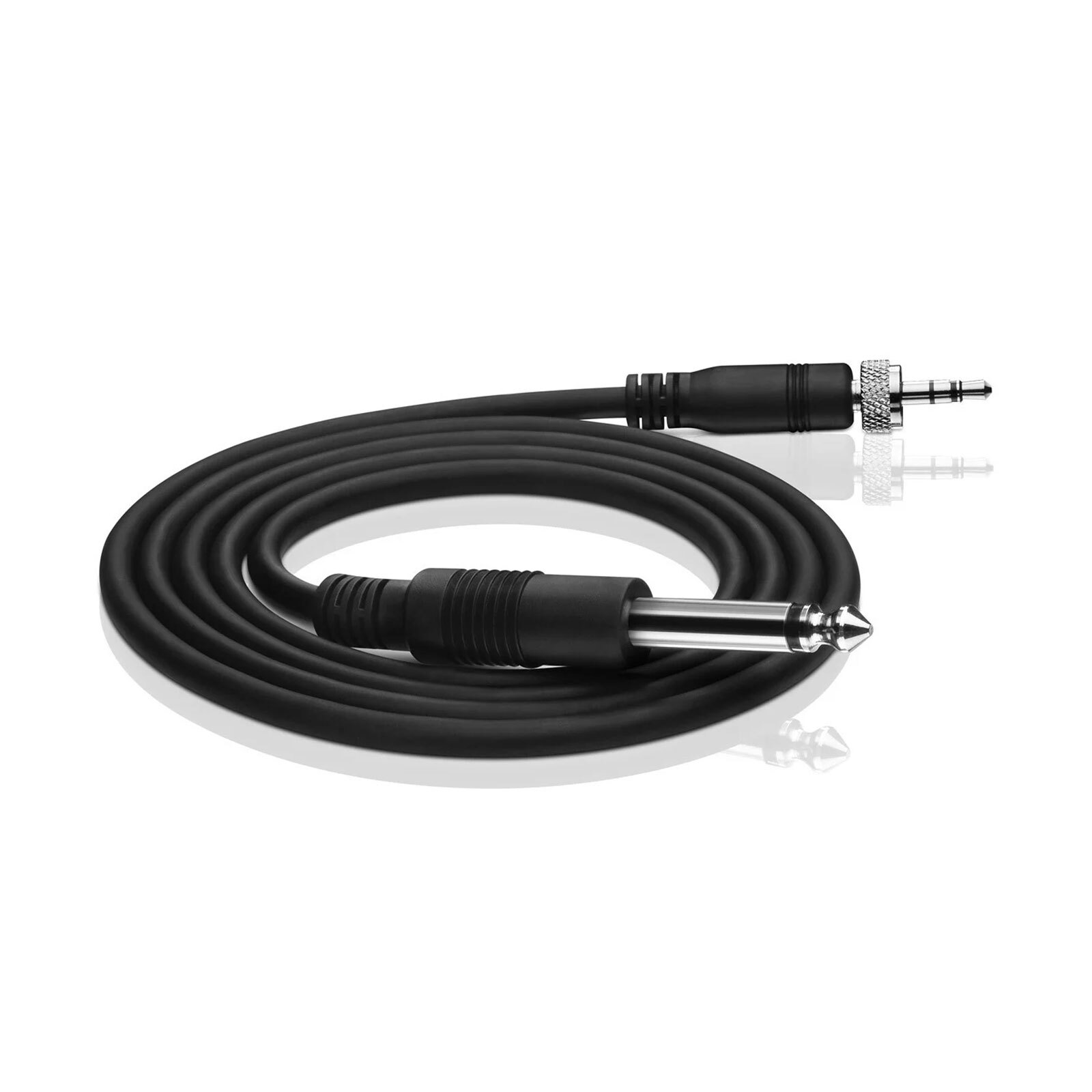

• 1 x instrument cable Cl1
• 1 x power supply NT 12-5 CW
• 2 x AA batteries

Technical:

• Dimensions: Receiver: approx. 200 x 42 x 127 mm - Bodypack transmitter: approx. 71 x 96 x 28 mm
• THD, total harmonic distortion: ≤ 0.9%
• Weight approx.: 340g (receiver), approx. 95g (transmitter)
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: Wideband FM
• Power supply: Receiver: 12 V DC nom. / 300 mA - Transmitter: 2 AA size batteries, 1.5 V

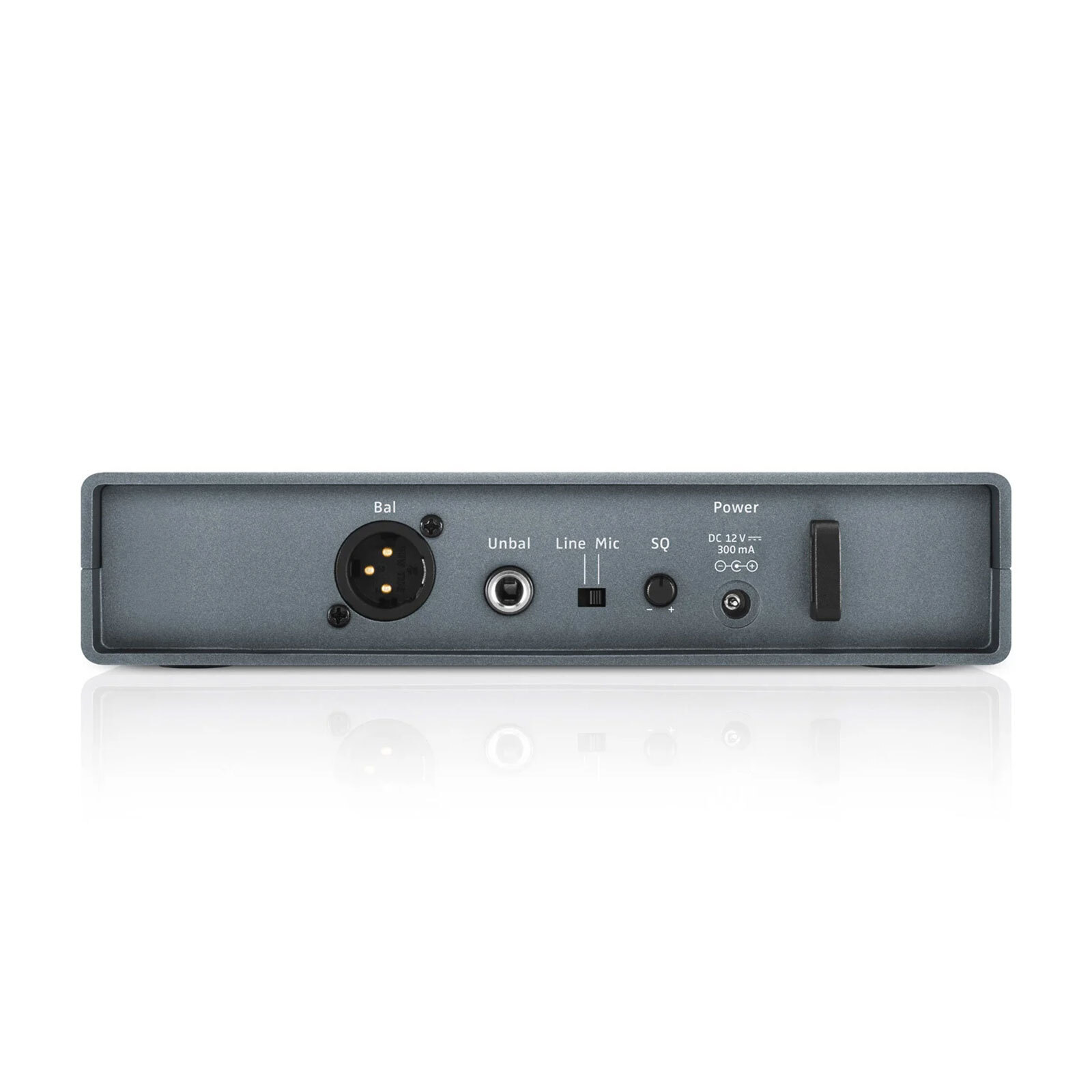

• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Frequency 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range A: 548-572 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 130 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
