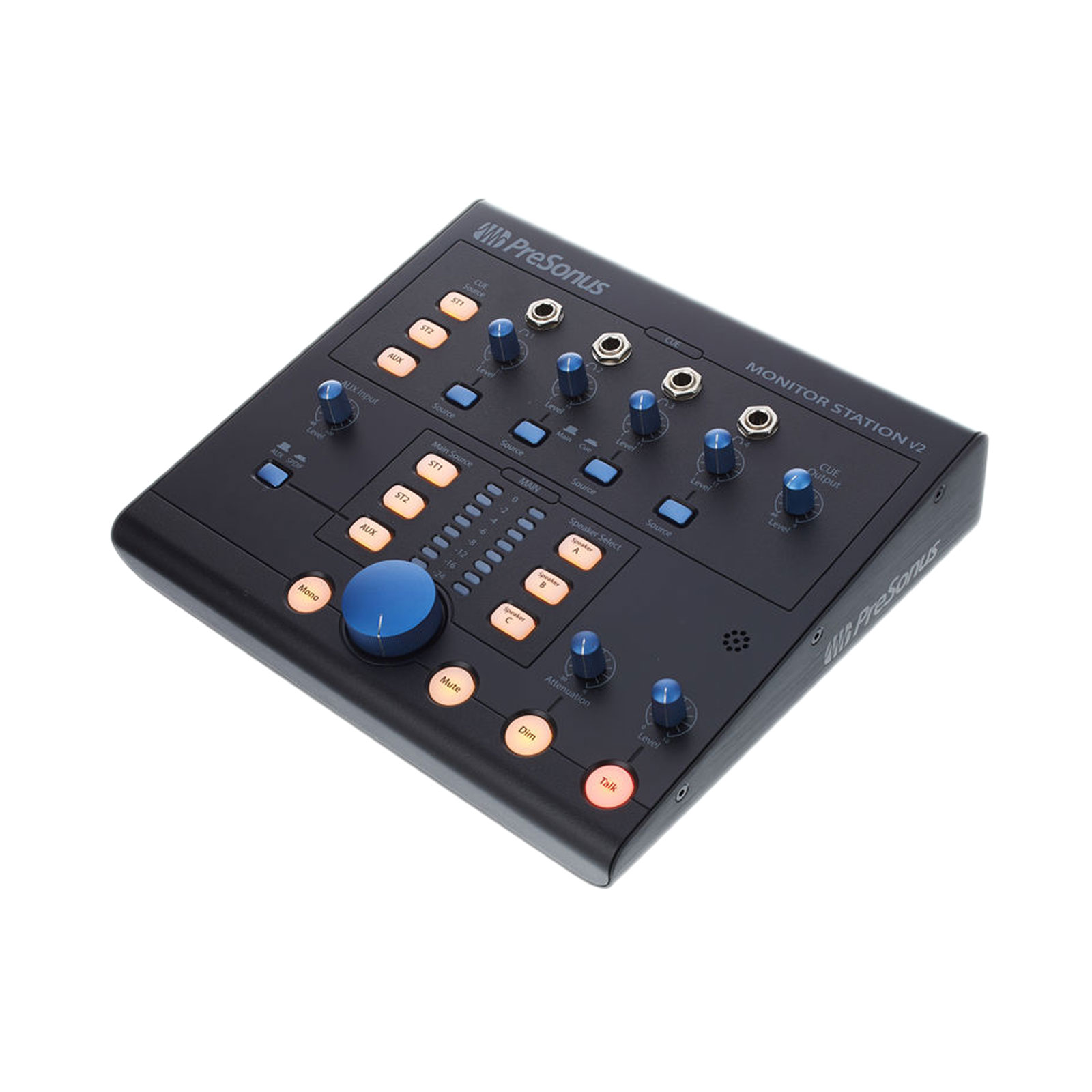

PreSonus Monitor Station-2 Desktop Studio Control Centre

Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer-all from your desktop.

Switch between two pairs of balanced 6.35mm TRS and a third input channel that can be fed from an S/PDIF digital input, one pair of unbalanced RCA Aux inputs with gain control, and a 3.5mm TRS unbalanced input that is summed with the RCA Aux inputs. A button switches between the analog Aux and digital S/PDIF inputs.

Each of the stereo inputs can be routed to one of two audio paths: Main and Cue. You also can route two separate signals (Main and Cue) to each of the four headphone amplifiers.

Switch between three sets of monitors and set each set of speakers’ level individually so that when you switch between speakers, your monitoring level stay the same.

Eight-segment, three-colour LED meters indicate left and right signal levels. A Mono switch sums the stereo outputs to check for phase problems. A large, knob controls the main speaker output level (but not the main line-level outs), and a Dim switch with attenuation knob lets you reduce the speaker output by a variable amount (-30 to -6 dB). Of course, you can mute the speakers as well.

Features :

• 2 Stereo pairs of 6.35mm TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of 6.35mm TRS speaker outputs with level controls
• 1 Stereo pair of 6.35mm TRS Main outputs
• 1 Stereo pair of 6.35mm TRS Cue outputs
• 4 x 6.35mm TRS stereo headphone outputs
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation
• 8-segment colour LED input meters with selectable reference level
• Built-in electret-condenser talkback mic with input-gain control and Talkback button
