Dune Moonstar Laser Effect

Sold Out

Calculate Shipping

1 x Dune Moonstar Laser Effect delivered to , AU

Collect - $0.00
Free in-store pick up from our Port Melbourne showroom

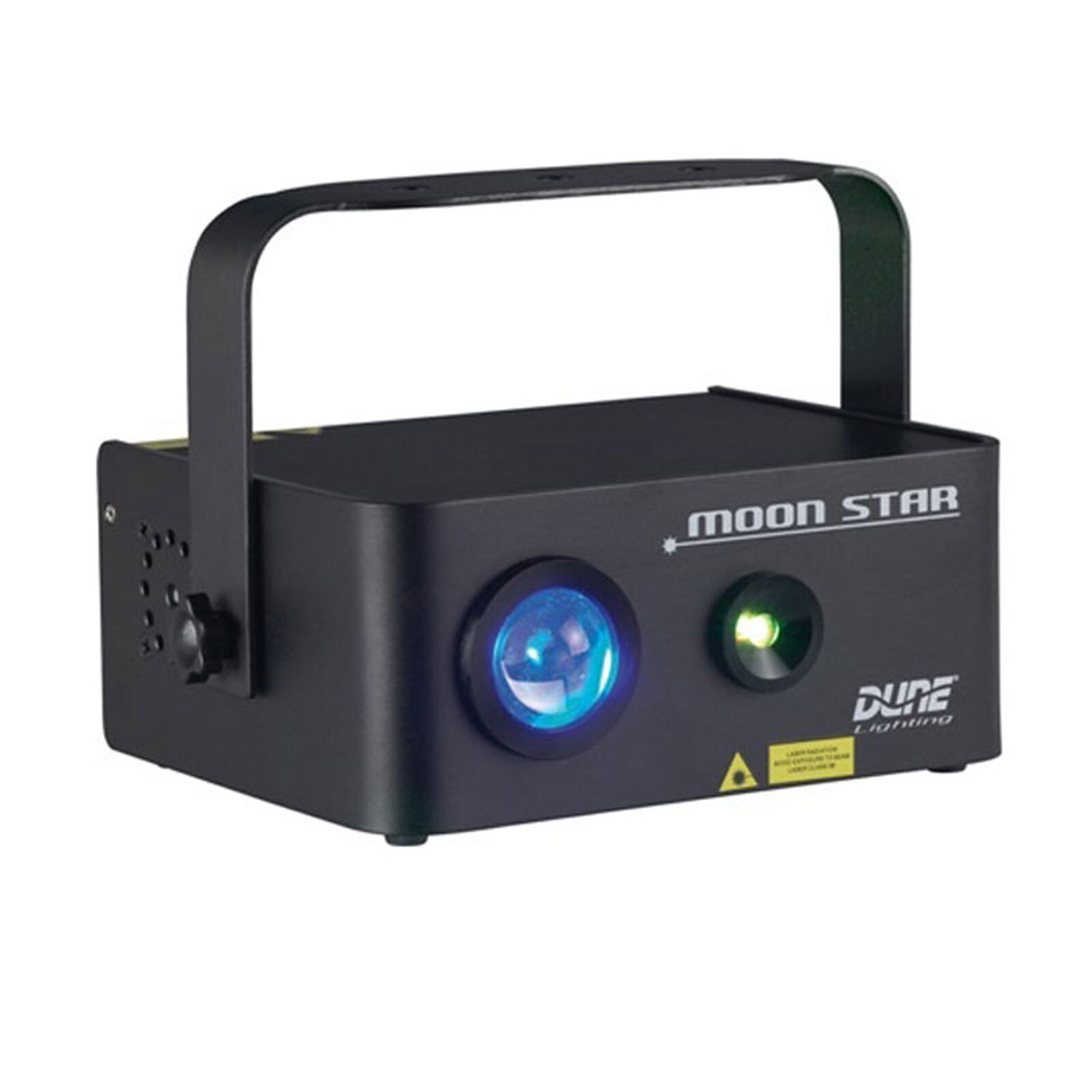

MOON STAR is the first laser projector integrated with high power LED effect. This unique laser effect is the perfect tool for creating a background atmosphere in a bar, lounge or entrance to a club.

Its blue LED and widespread cluster effect can be tailored to suit a specific environment or create a certain mood via the easy-to-use rear control panel.

Specifications :

  • Power Supply: DC5V/2A , 50Hz 60Hz
  • Rating Power: 8W
  • Laser Power: 80mW 650nm Red + 30mW 532nm Green
  • LED Power: 5W 455nm Blue
  • Laser Modulation: TTL/Analog Modulation, Frequency 0 10KHZ
  • Scan System: High speed scanner >20K scan angle: ±20 degree with the function of control and protection when the size is too small, the power is too high, the resistance is too big, or the temperature is too high.
  • System Port: ILDA DB25 standard port (switching automatically) Standard 9 pins TTL input, and internal TTL driving.32 Channel DMX512 input and output port
  • Control Mode: Grating rotating speed control, LED effect control, LED power control, laser blanking control, combine effect control
  • Display and Operation:
    • LCD and LED Control Panel
    • Laser diode status LED Corresponding
    • Scanning area sizing reset and pattern mirroring
  • Protection and security : Standard laser aperture shutter, Key switch, Interlock, Emergency Stopper, Laser black-out and scanning sizing limited.
  • Size: 180 × 140 × 80mm (L × W × H)
  • Weight: 4kg


Brand Dune
Shipping Weight 3.0000kg
Shipping Width 0.150m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.011250000m3
