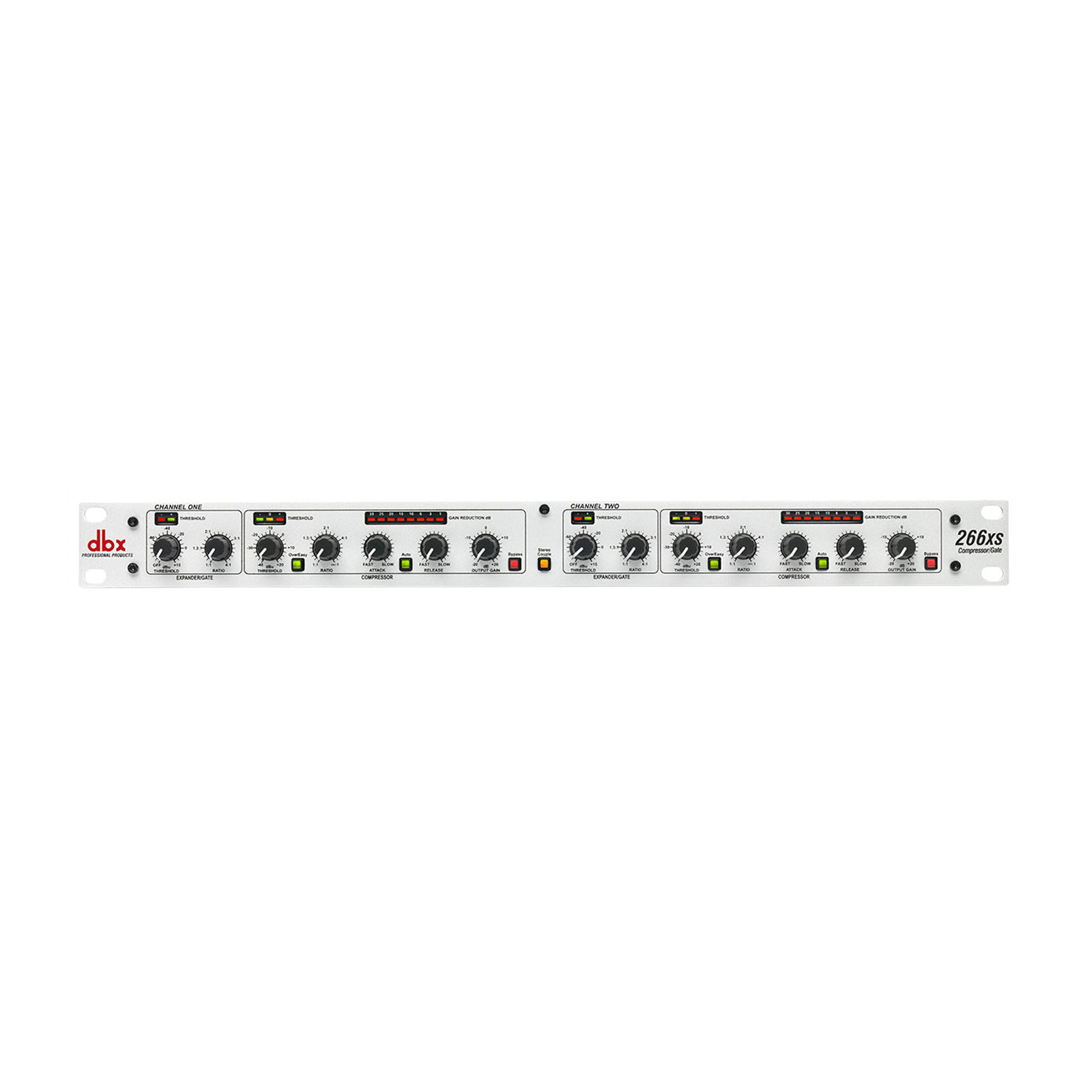

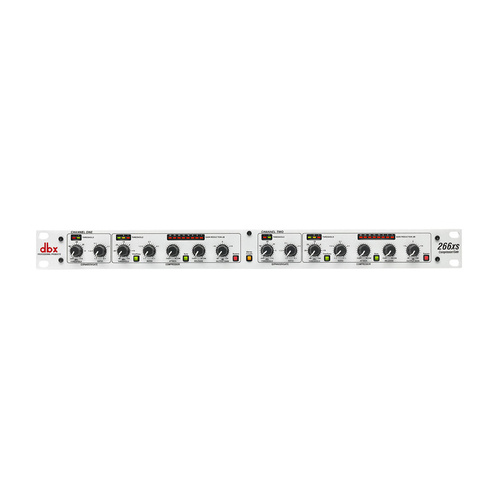

dbx 266XS Dual Compressor/Gate 1U Rack Mount

The 266xs is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy® compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on dbx compressors, puts great sound within easy reach.

The 266xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs.

Features :

• Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
• New gate timing algorithms ensure the smoothest release characteristics
• Program-adaptive expander/gates
• Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
• Stereo or dual-mono operation

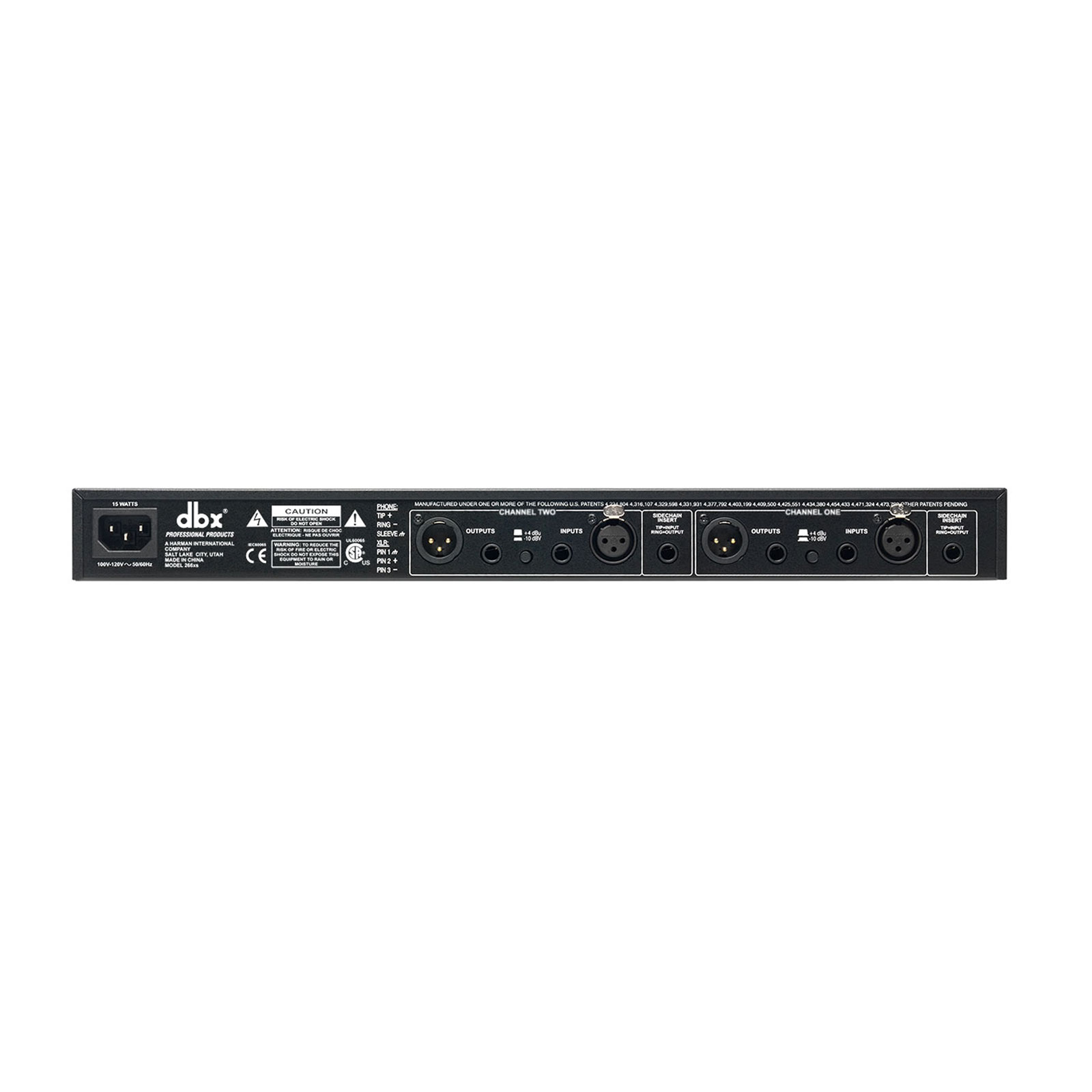

• Balanced inputs and outputs on 1/4" TRS and XLR connectors
• Side Chain insert
• Classic dbx® "Auto" mode

Technical :

• Input Connectors : 1/4" TRS and female XLR (pin 2 hot)
• Max Input : +22dBu Balanced or Unbalanced
• Output Connectors : 1/4" TRS, female XLR (pin 2 hot)
• Sidechain : 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
• Compressor Threshold Range : -40dBu to +20dBu
• Compressor Threshold Characteristic : Selectable OverEasy® or hard knee
• Compressor Ratio : 1:1 to Infinity:1
• Expander/Gate Threshold Range : -60dBu to +15dBu
• Expander/Gate Ratio : 1:1 to 4:1
• Expander/Gate Attack Time : <100us
• Expander/Gate Release Time : Program-dependent
• Bandwidth : 0.35Hz - 90kHz, +0/-3dB
• Frequency Response : Flat: 20Hz-20kHz
• Noise : -93dBu unweighted (22kHz measurement bandwidth)
• THD+Noise : Typically <0.2%; Any Amount of Compression @1kHz
• IMD : Typically <0.2% SMPTE
• Dynamic Range : >114 dB, unweighted
• Interchannel Crosstalk : -95dB, 20Hz to 20kHz
• CMRR : >40dB, typically >55dB at 1kHz
• Stereo Coupling : True RMS Power Summing
• Dimensions : 4.45 cm x 14.6 cm x 48.26 cm
• Unit Weight : 2.19 kg
