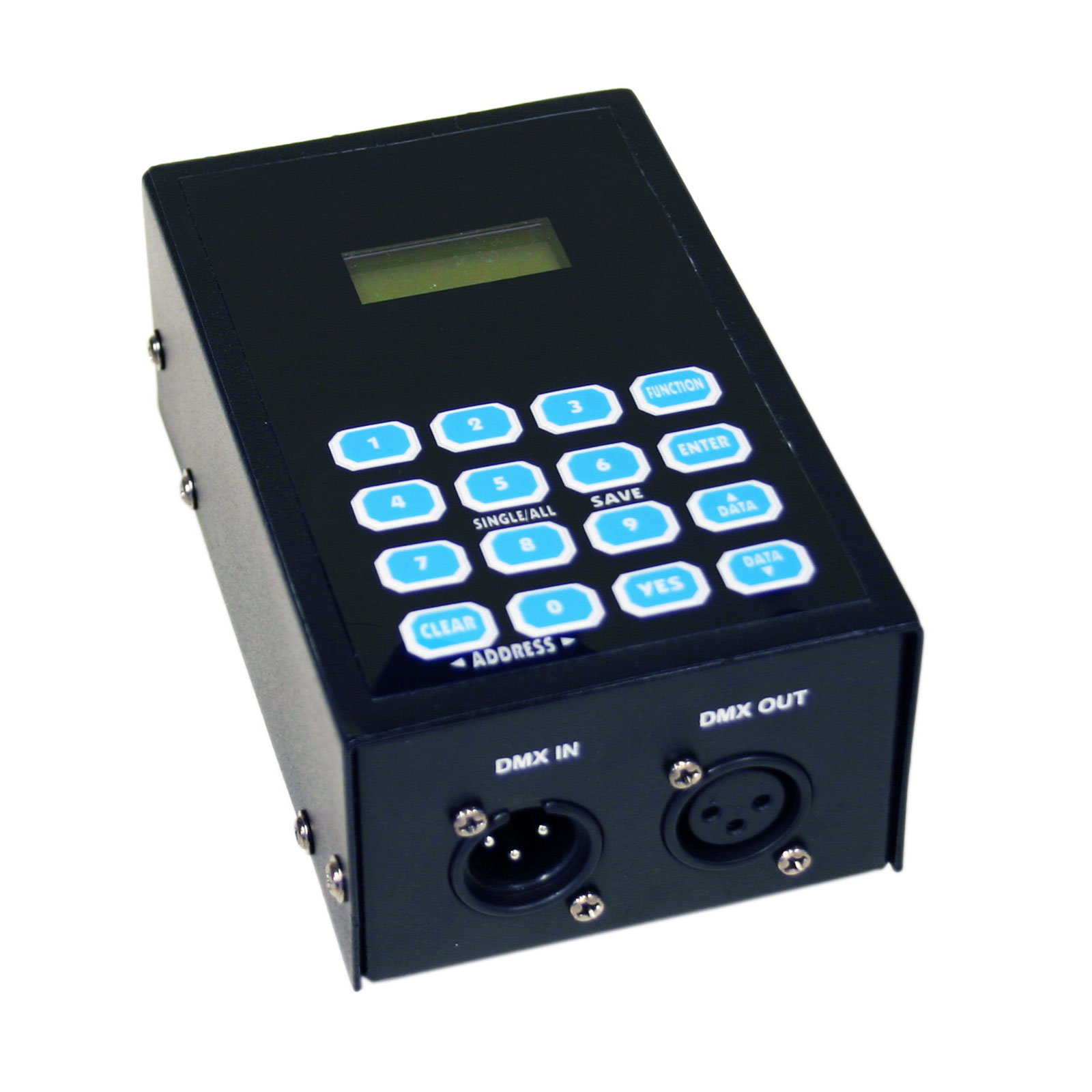

Bravo HD121 DMX Tester

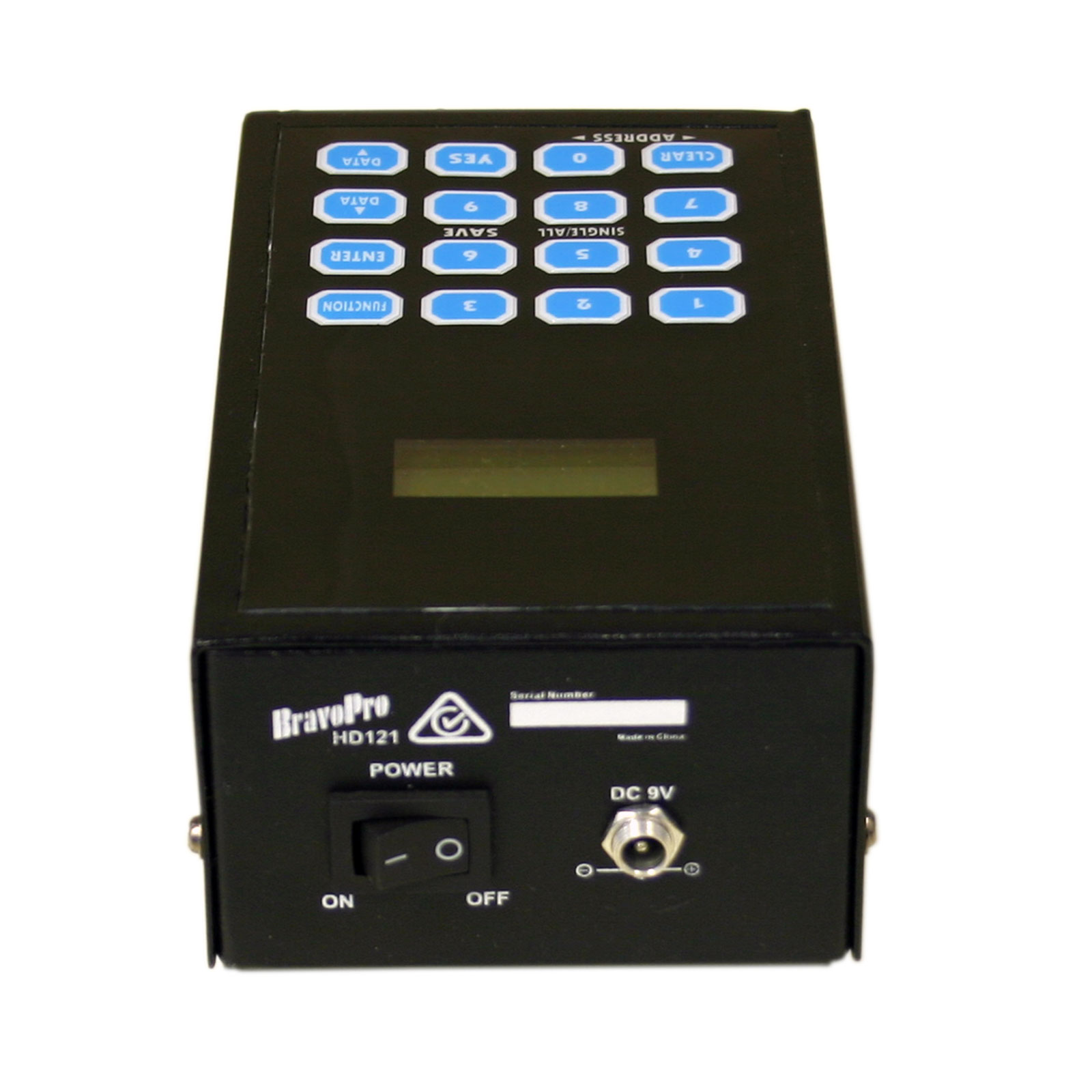

The Bravo HD121 is a multi-function DMX test device that runs on 4 x AA batteries (not included) or the included 9V DC power supply.

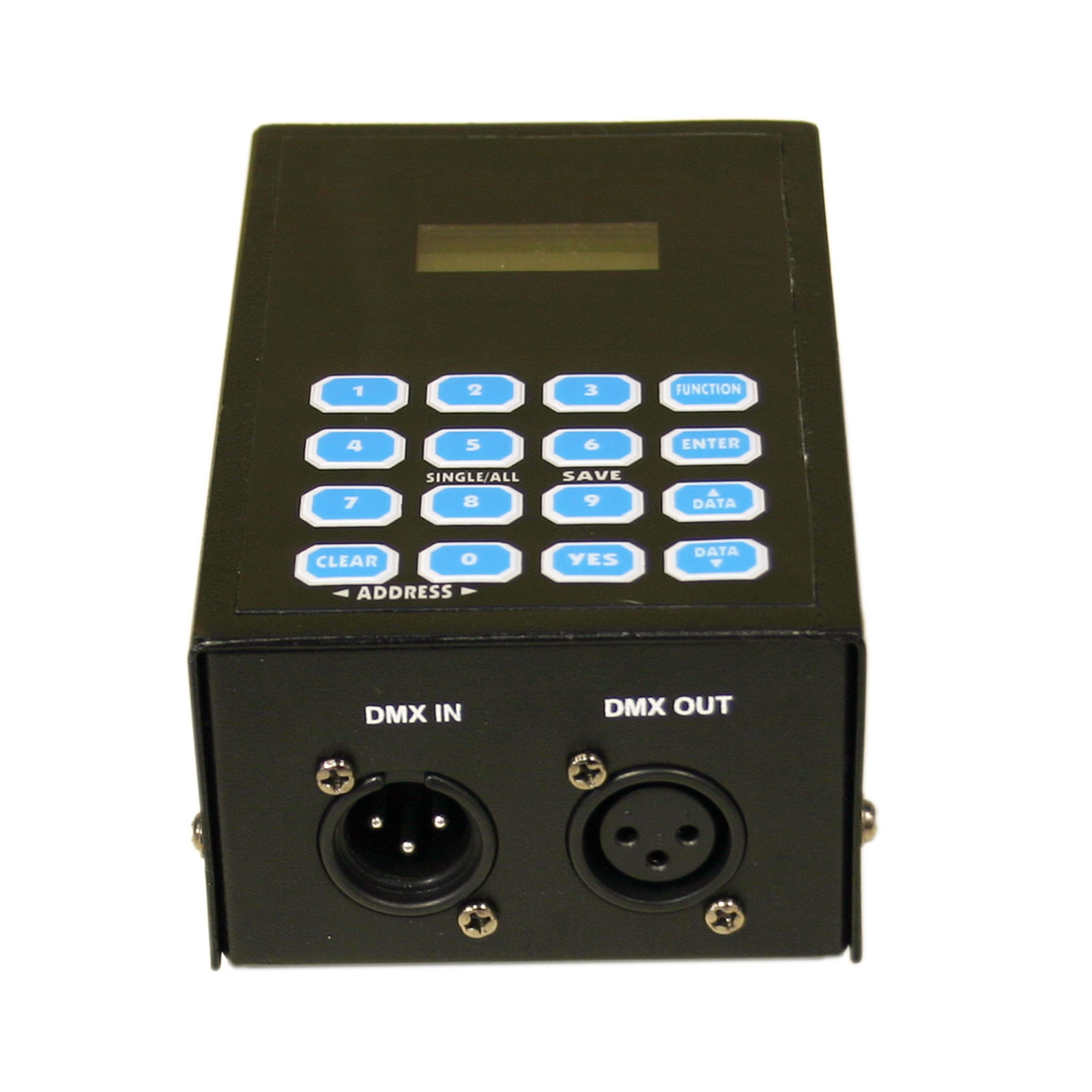

3-pin DMX In and Out, small lightweight and portable.

• Dimensions : 85 x 140 x 55mm
• Weight : 600g (without batteries)

Main Functions :

• DMX Out : There are three ways to transmit DMX data
  • Trasmit data on 1 channel
  • Transmit data on 8 series channels
  • Transmit data on any channels and one more data on another channel
• DMX In : Reveive series three channel data
• Auto Fade : Auto increase 1 data like 1 to FFH, then decrease 1 data to 0. no stop
• Record Memory : There are 10 scenes that can be recorded and they can be used in any time. Each scene includes 48 channel data
• Clear Memory : There are two ways to delete scenes. One time one scene and one times all scenes
• DLD Test : This function is just for fixture, the minimum channels is 3 and the maximum is 24. The address range is 1-512 and the value is 80H (50%)
• HEX-% : This function is for the user to select channel data to appear data format
