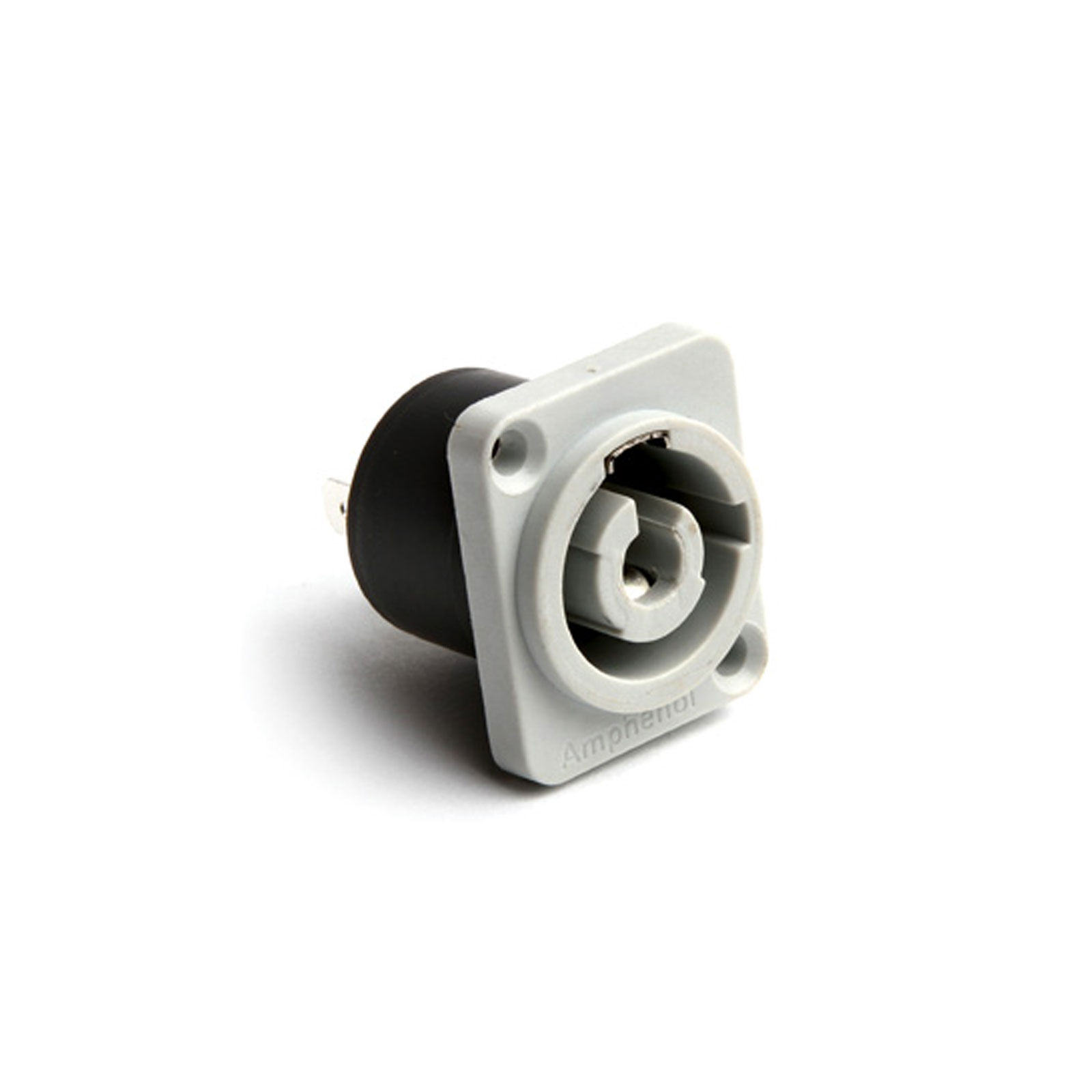

Amphenol HP-3-MDGW Grey 25A Power Out PowerCON Chassis Connector

HP Series connectors are suitable for AC power supply, they are rated at 25 A / 250 Vac. Connectors are keyed and colour coded for power-in (Blue) and power-out (Grey).

Features :

• Quick release, vibration resistant latch lock
• 3 pole
• Screw Terminals
• Chuck type cable clamp
• 25A Current rating
• Thermoplastic housing
• Industry standard mating

NOTE : THE HP SERIES OF CONNECTORS ARE NOT DESIGNED TO BE “HOT PLUGGED” AND SO ARE WITHOUT “BREAKING CAPACITY”. IN OTHER WORDS, THE CONNECTORS SHOULD NOT BE CONNECTED OR DISCONNECTED LIVE OR WHEN UNDER LOAD.
